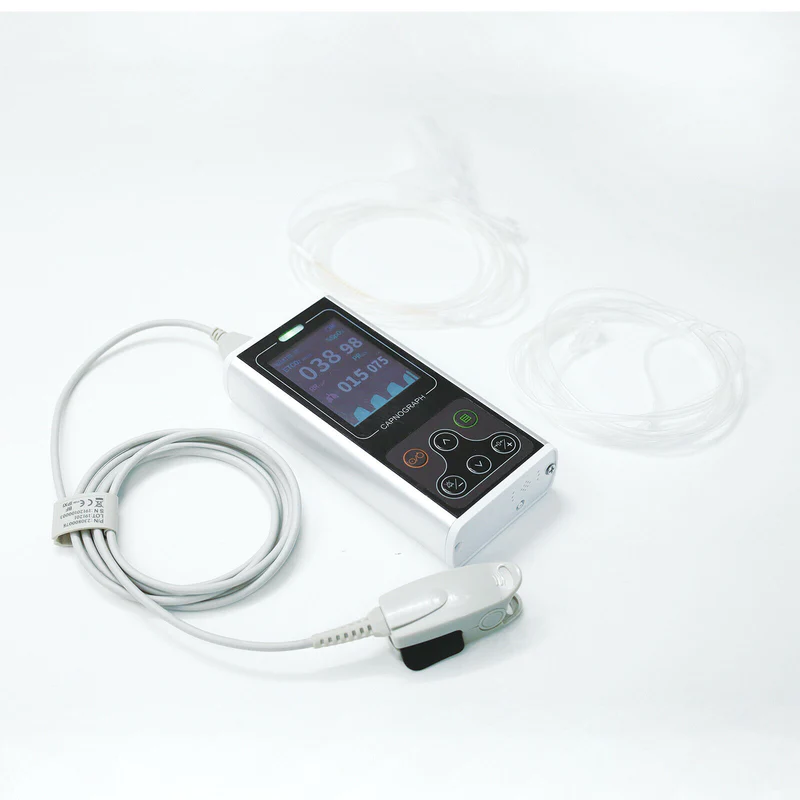

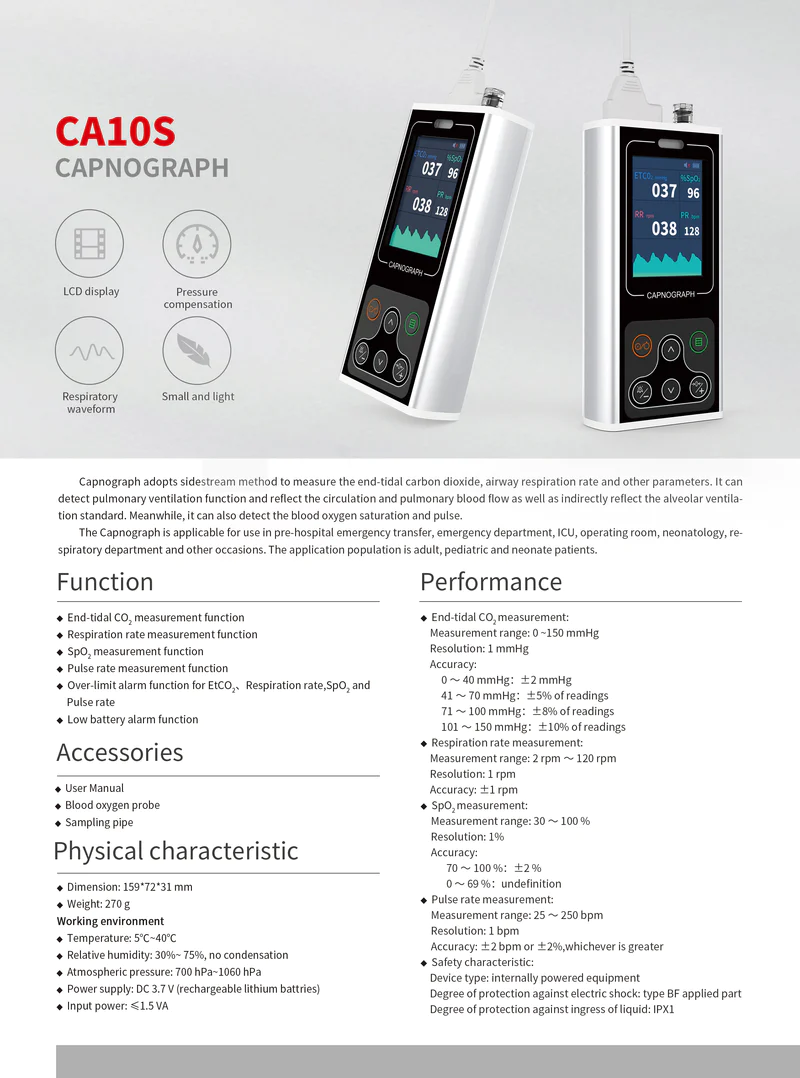

Contec CA10S Capnograph – Side Stream ETCO2 Handheld Monitor adopts side stream method to measure the end-tidal carbon dioxide, airway respiration rate and other parameters. It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow condition, as well as indirectly reflect the alveolar ventilation, which is applicable for use in pre-hospital emergency transfer, emergency department, ICU, operating room, neonatology, respiratory department and other occasions. The application population is adult, pediatric and neonate patients. The Capnograph measure ETCO2 levels through the nasal cannula.
Contec CA10S Capnograph – Side Stream ETCO2 Handheld Monitor Features:
- End-tidal CO2 measurement function
- Respiration rate measurement function
- SpO2 measurement function
- Pulse rate measurement function
- Over-limit alarm function for EtCO2, Respiration Rate, SpO2 & Pulse Rate.
- Low battery alarm function
Contec CA10S Capnograph – Side Stream ETCO2 Handheld Monitor Performance:
End-tidal CO2 Measurement:
- Measurement range: 0 ~150mmHg
- Resolution: 1mmHg
- Accuracy:
- 0~40 mmHg:±2 mmHg
- 41~70 mmHg:±5% of readings
- 71~100 mmHg:±8% of readings
- 101~150 mmHg:±10% of readings
Respiration Rate Measurement:
- Measurement range: 2rpm~150rbpm
- Resolution: 1rpm
- Accuracy: ±1rpm
SpO2 measurement:
- Measurement range: 30～100 %
- Resolution: 1%
- Accuracy:
- 70～100 %：2 %
- 0～69 %：undefinition
Pulse rate measurement:
- Measurement range: 25～250 bpm
- Resolution: 1bpm
- Accuracy: ±2 bpm or ±2%,whichever is greater
Contec CA10S Capnograph – Side Stream ETCO2 Handheld Monitor Box Contents:
- User Manual
- Blood oxygen probe
- Sampling pipe
- USB wire
So far it’s working well
