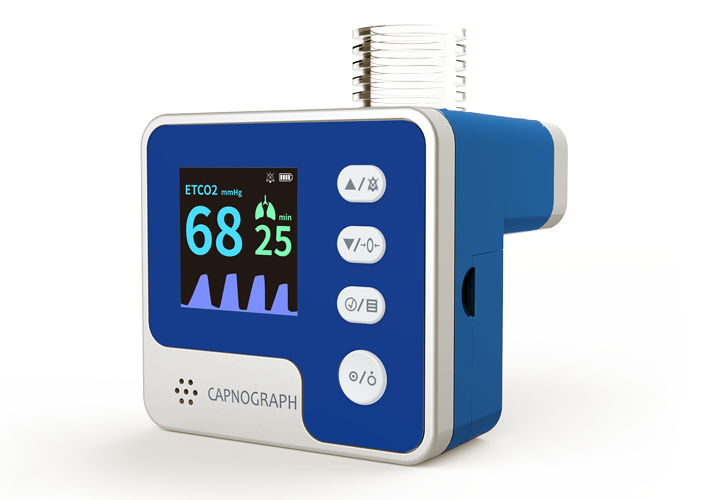

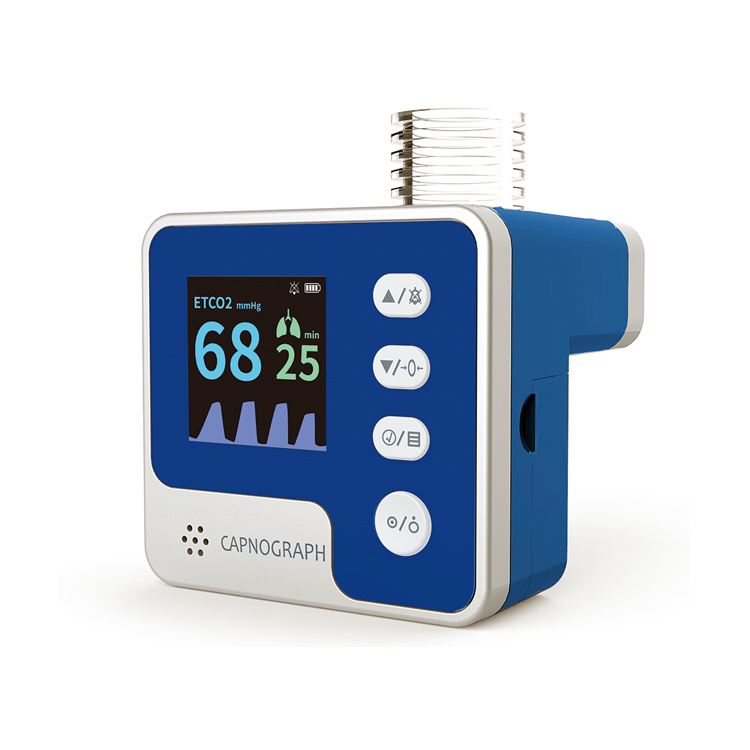

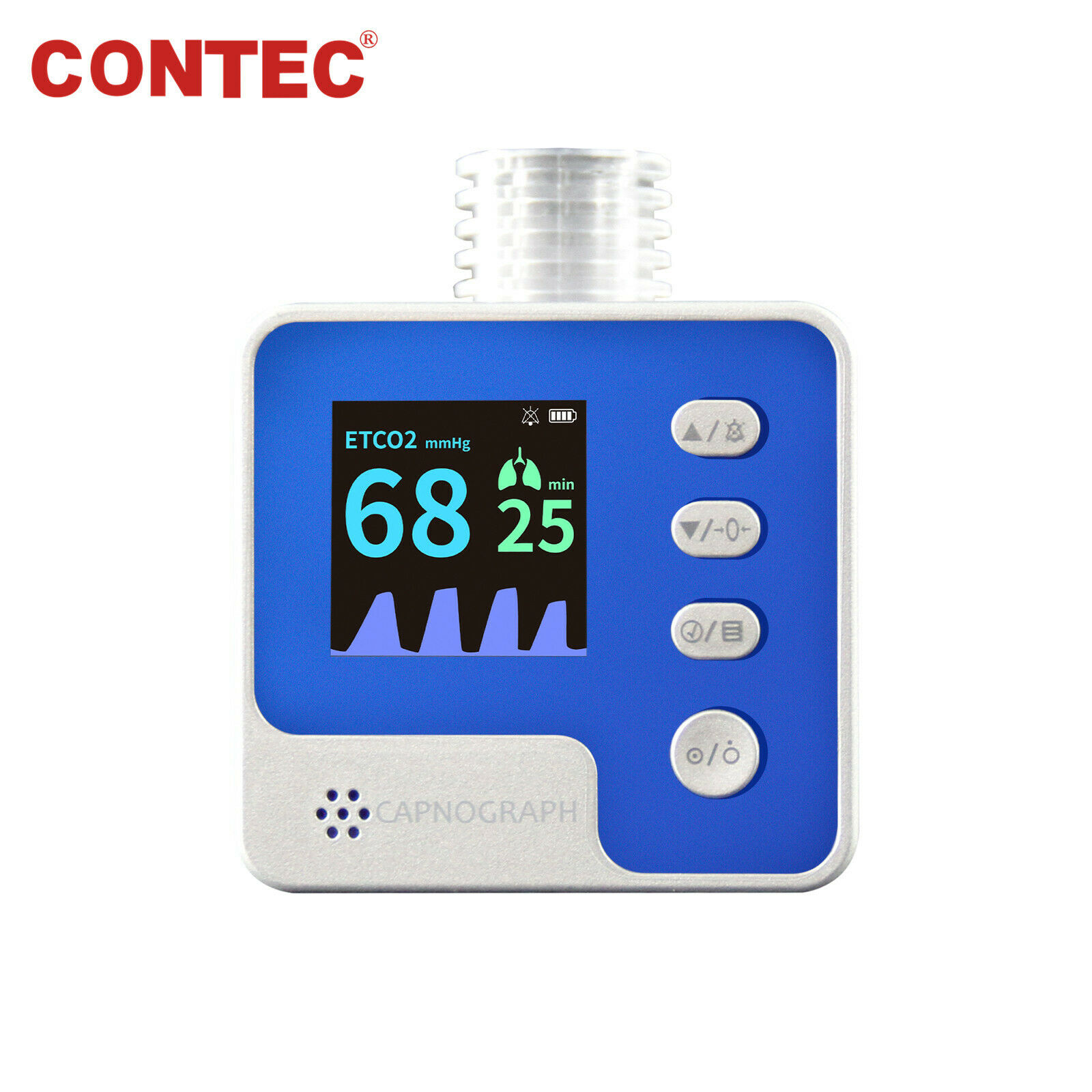

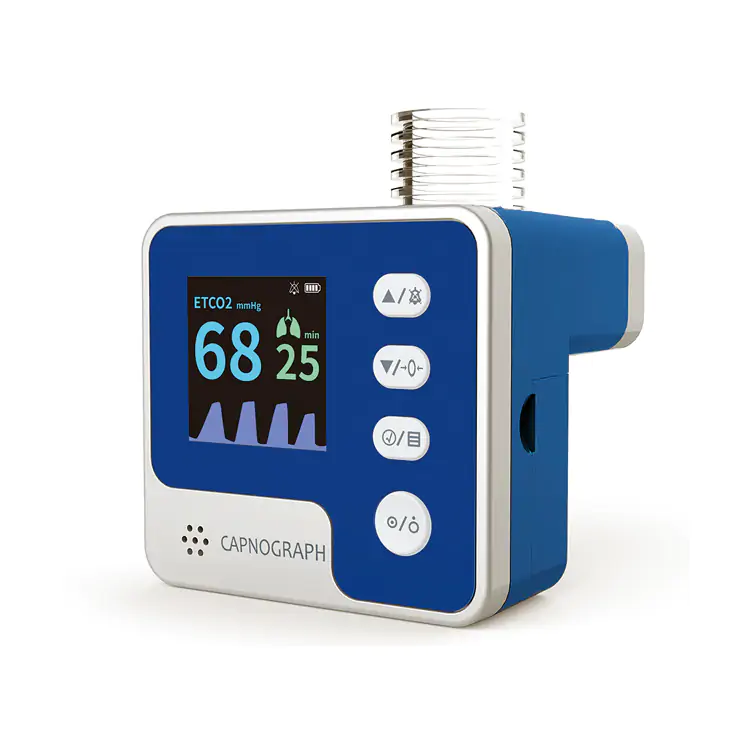

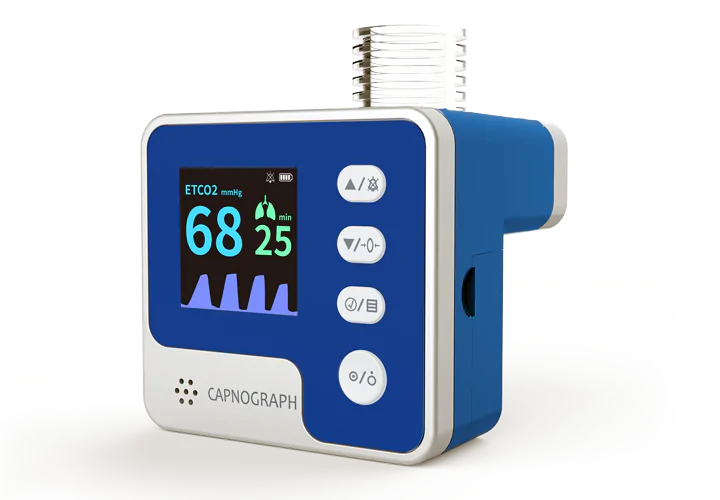

Contec CA10M Capnograph-Mainstream ETCO2 Monitor adopts mainstream method to measure the end-tidal carbon dioxide, airway respiration rate and other parameters. It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow condition, as well as indirectly reflect the alveolar ventilation, which is applicable for use in pre-hospital emergency transfer, emergency department, ICU, operating room, neonatology, respiratory department and other occasions. The application population is adult, pediatric and neonate patients. The Capnograph connects with patient’ respiratory tract by the airway adapter and breathing tube.
Contec CA10M Capnograph-Mainstream ETCO2 Monitor Features:
- End-tidal CO2 measurement function
- Respiration rate measurement function
- Over-limit alarm function for End-tidal CO2 and respiration rate
- Low battery alarm function
- Waterproof and dustproof degree:IPX2
- Etco2 measuring range: 0-150 mmHg
- AwRR measuring range: 2-150 rpm
- 1.3″ true color LCD,user-friendly interface, easy to operate
- Compact and lightweight design
- Audio-visual alarm system
Contec CA10M Capnograph-Mainstream ETCO2 Monitor Performance:
End-tidal CO2 measurement:
1)Measurement range: 0 ~150mmHg
2)Resolution: 1mmHg
3)Accuracy:
0~40 mmHg:±2 mmHg
41~70 mmHg:±5% of readings
71~100 mmHg:±8% of readings
101~150 mmHg:±10% of readings
Respiration rate measurement:
1)Measurement range: 2rpm~150rbpm
2)Resolution: 1rpm
3)Accuracy: ±1rpm
