Yonker YK-8000B Multi Para Patient Monitor Features:
- Multi-Parameter Monitoring: Monitors a variety of patient parameters including ECG, NIBP (Non-Invasive Blood Pressure), SpO2 (Oxygen Saturation), temperature, and optional EtCO2 (End-Tidal CO2).

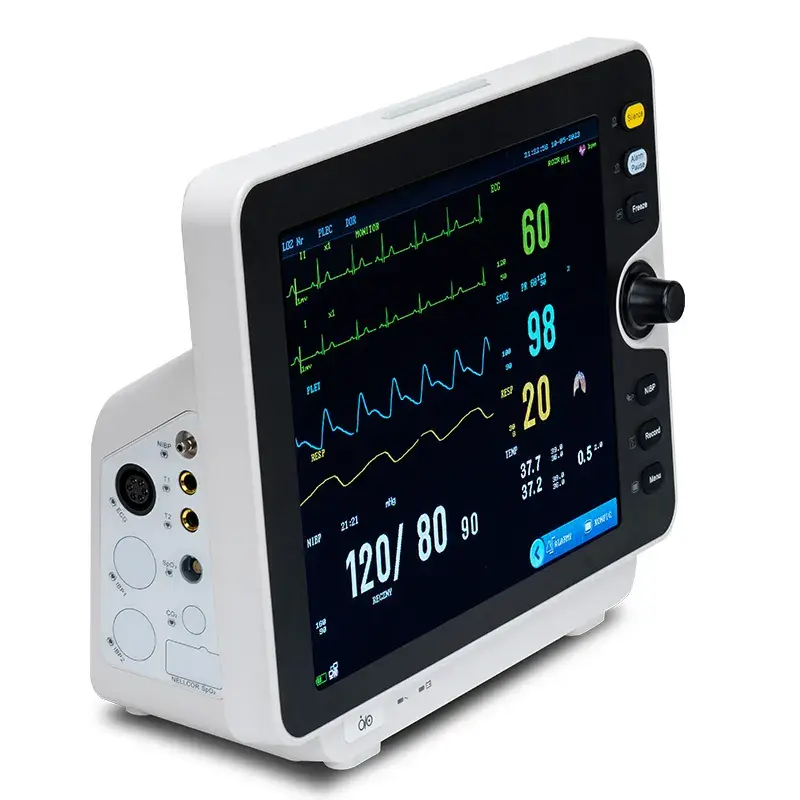

- Large Color LCD Display: 10.4-inch color display for clear, real-time monitoring of patient data.
- Modular Design: Flexible configuration with multiple input options for customized monitoring.
- Multi-Channel ECG: Provides a 3/5-lead ECG monitoring system with a built-in algorithm for accurate heart rate and rhythm detection.
- Real-Time Data Processing: Continuous, real-time processing of patient data to ensure accurate and timely alerts.
- Alarm System: Audible and visual alarms for various parameters such as heart rate, SpO2, blood pressure, etc., to alert medical personnel of abnormal conditions.
- Battery Backup: Equipped with a rechargeable battery for portability and continued operation during power failures.
- Data Storage and Recall: Can store patient data, allowing healthcare providers to review historical information for diagnosis.
- Multiple Language Support: User interface supports multiple languages, improving accessibility for diverse medical personnel.
- Connectivity Options (Optional): Supports networking with hospital information systems (HIS) and electronic medical records (EMR) for streamlined patient data management.
- Compact and Lightweight: Easy to transport and set up, suitable for both stationary and mobile medical environments.
- User-Friendly Interface: Intuitive touch screen and easy-to-navigate controls for efficient operation by healthcare staff.
- Thermal Printer (Optional): Optional thermal printer for printing reports and patient data directly from the monitor.
Yonker YK-8000B Multi Para Patient Monitor Specs:
| Specification | Details |
|---|---|
| Display | 10.4-inch TFT LCD color display |
| ECG Monitoring | 3/5-lead ECG with built-in arrhythmia detection and heart rate monitoring |
| Heart Rate | 30-300 bpm |
| Blood Pressure | NIBP (Non-Invasive Blood Pressure) |
| SpO2 (Oxygen Saturation) | 0-100%, with an accuracy of ±2% (70-100%) |
| Temperature Measurement | Dual-channel temperature measurement (Range: 25°C to 45°C) |
| Respiration Rate (Optional) | 0-150 breaths/min, with a range of ±2% |
| EtCO2 (Optional) | 0-150 mmHg with CO2 waveform analysis |
| Power Supply | AC 100-240V, 50/60Hz, with a built-in rechargeable battery (3-4 hours of backup) |
| Battery Type | Lithium-ion battery |
| Alarm Type | Visual and audible alarms for parameters like HR, BP, SpO2, etc. |
| Alarm Volume | Adjustable volume |
| Data Storage | Stores up to 72 hours of patient data for review |
| Connectivity | Supports connection to hospital networks, HIS, and EMR systems for patient data management |
| Printer (Optional) | Built-in thermal printer for report generation (optional) |
| Dimensions | 330mm (W) x 290mm (D) x 80mm (H) |
| Weight | Approx. 3.2 kg |
| Environmental Conditions | Operating temperature: 0°C to 40°C; Operating humidity: 10%-95% (non-condensing) |
| Mounting Options | Can be mounted on a trolley or a wall (optional accessories for mounting) |

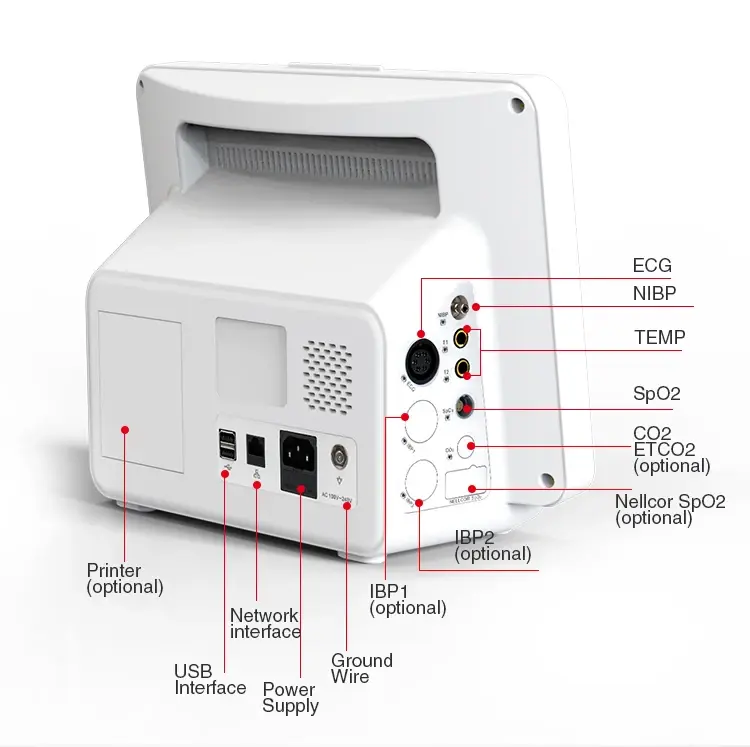

| Communication Ports | USB, RJ45 for data transfer and network connectivity |
| Languages Supported | Multiple languages for interface customization |
Yonker YK-8000B Multi Para Patient Monitor Video Demo:

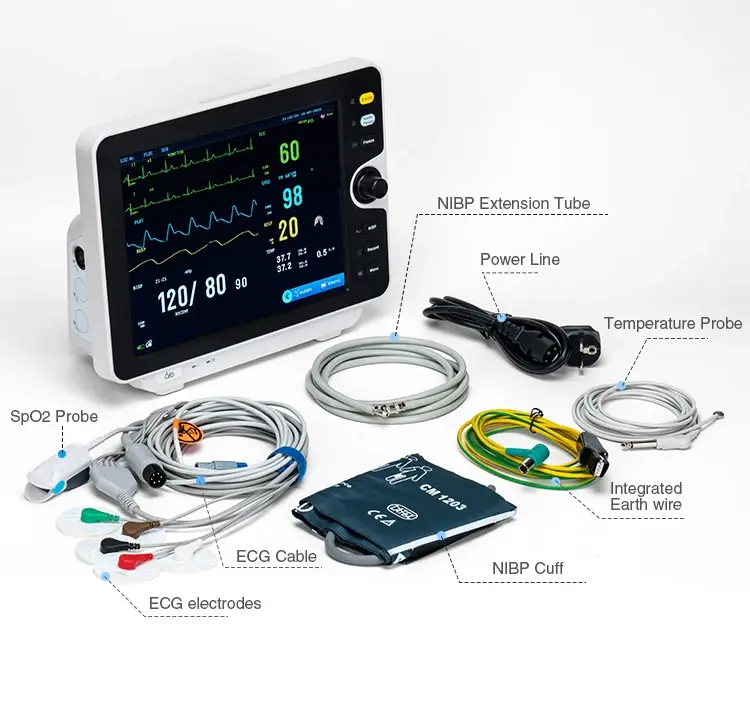

Yonker YK-8000B Multi Para Patient Monitor Contents:
- NIBP cuff & tube
- ECG cable & electrodes
- SpO 2 sensor
- TEMP probe
- Lithium-ion battery
- Power cable
- Operator’s manual
