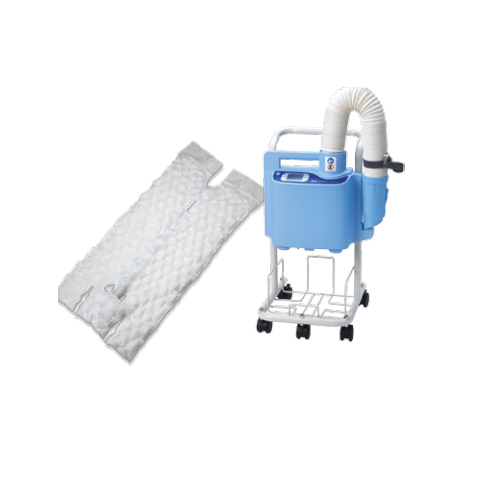

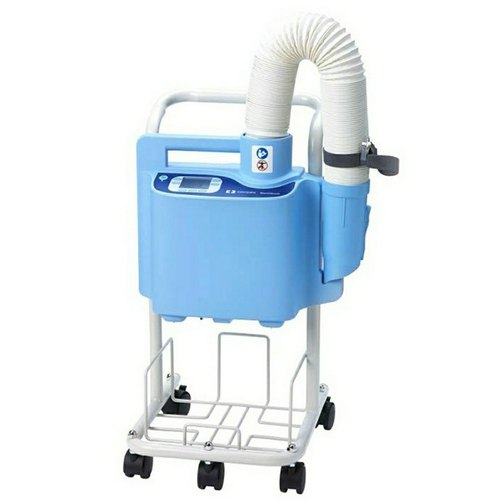

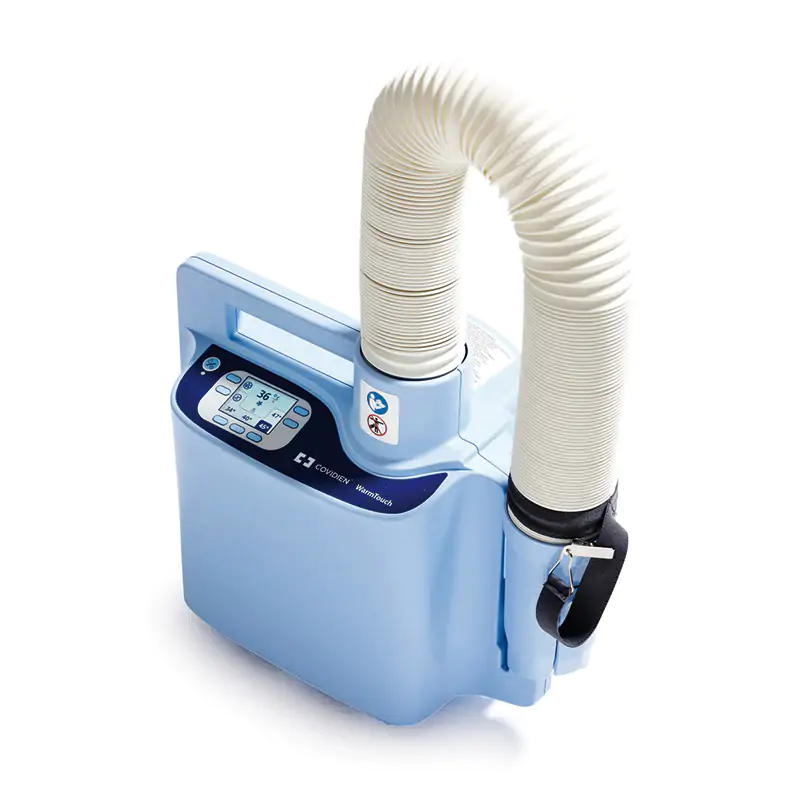

The WarmTouch convective warming system provides an easy solution for maintaining normothermia. The WarmTouch convective warming unit has an intuitive screen showing the temperature and status of each of the five temperature settings. The soft but strong WarmTouch blanket is tailored for most surgical procedures, offering even airflow and patient comfort.
FEATURES:
- Easy to use – A new, intuitive LCD screen and menu function provide all information at a glance.
- Easy to control – Five different settings, including ambient and boost, are offered for more flexibility and precision.
- Easy to handle – It is lightweight, making it easy to transport and attach the unit to a cart, bed rail, or an IV pole.
- Easy to service – The onscreen filter expiration warning makes it easy to maintain and service the unit.
Specifications
| WARMING UNIT | |
|---|---|
| Size | 24 in. x 17 in. x 12 in. (60 cm x 43 cm x 30 cm) (hose fully collapsed, nozzle in storage position on unit) |
| Weight with power cord | 5.2 kg (11.5 lbs) |
| TRANSPORT CART (OPTIONAL) | |
| Weight | 3.1 kg (6.8 lbs) |
| Height | 67.1 cm (26.4 in.) |
| Width | 32.3 cm (12.7 in.) |
| Depth | 38.6 cm (15.2 in.) |
| ELECTRICAL REQUIREMENTS ENVIRONMENTAL | |
| Power requirements | 100 to 240 V AC |
| Max. current at 100 V = 8 A | |
| Max. current at 240 V = 5 A | |
| Input frequency | 50/60 Hz ±1 Hz |
| Fuse (x2) | Littlefuse (mfr.) 0218010; 250 V, 10 A |
| Temperature | 18°C to 28°C (64.4°F to 82.4°F) |
| PERFORMANCE SPECIFICATIONS | |
| Maximum contact surface temperature | 44.1°C (111.4°F) |
| Average time for contact surface temperature to rise from 23°C ±2°C to 37°C | 6 minutes |
| Average time for temperature of air exiting the hose to rise from 23°C ±2°C to 37°C | < 1 minute |
| Accuracy of displayed temperature | ±1.0°C (air entering hose) |
| Automatic temperature step down (boost to high temperature) | After 45 minutes of continuous use, blower will step down from the boost to high setting. |
| Thermal protection threshold | Thermostat (internal) 49°C to 55°C (120°F to 131°F) |
| Average alarm level | 56 dB @ 1 meter |
