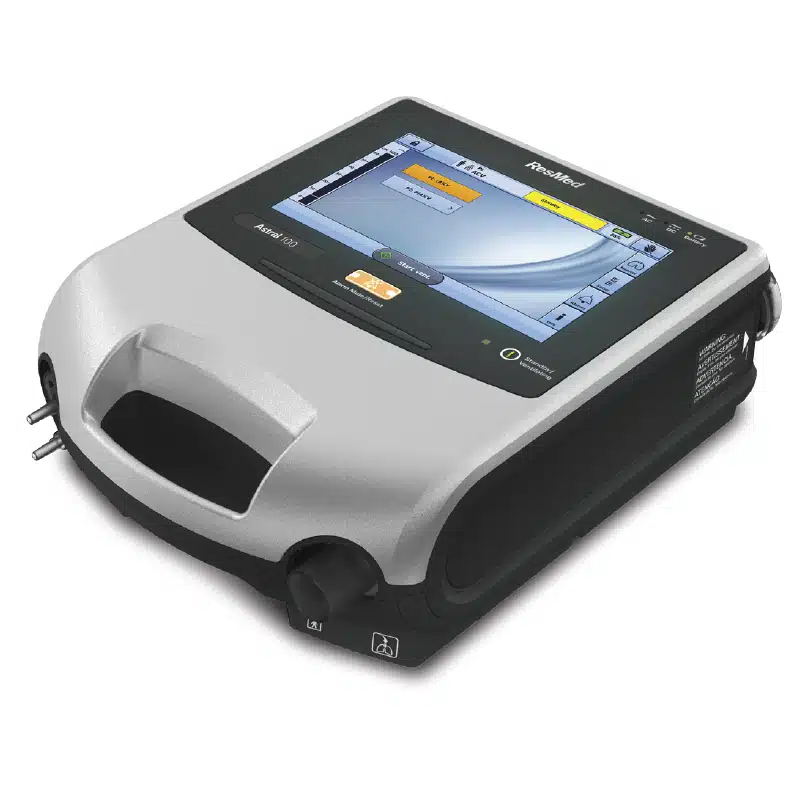

Astral 100 Non-Invasive and Invasive Life Support Ventilator
The Astral 100 Non-Invasive and Invasive Life Support Ventilator is a cutting-edge, portable ventilation solution designed for both invasive and non-invasive respiratory support. Built to deliver consistent and reliable performance, this advanced ventilator is suitable for patients requiring long-term ventilation at home or in clinical environments.
Designed with patient comfort and caregiver convenience in mind, the Astral 100 offers intuitive controls, quiet operation, and advanced monitoring capabilities. Whether managing chronic respiratory conditions or providing critical life support, this device ensures precision, flexibility, and peace of mind.
Ideal for patients suffering from conditions such as COPD, neuromuscular disorders, or respiratory failure, the ventilator supports a wide range of ventilation modes tailored to individual needs.
Key Features of Astral 100 Non-Invasive and Invasive Life Support Ventilator
- Dual Ventilation Capability
Supports both invasive and non-invasive ventilation, making it highly versatile for different patient needs. - Portable & Lightweight Design
Easy to carry and ideal for home care, transport, or clinical use. - Extended Battery Life
Built-in and optional external batteries ensure uninterrupted therapy during power outages. - Advanced Ventilation Modes
Includes pressure and volume control modes for personalized treatment. - User-Friendly Interface
Large color display with simple navigation for easy setup and monitoring. - Whisper-Quiet Operation
Enhances patient comfort, especially during sleep. - Comprehensive Monitoring
Real-time data tracking ensures optimal therapy delivery and patient safety.
Technical Specifications:
| Indications for use | Life support for patients over 5 kg* |
|---|---|
| Single circuit with leak | ✓ |
| Single circuit with valve | ✓ |
| Double circuit | x |
| Valve circuit therapy: CPAP, ACV, PACV, P-SIMV, V-SIMV, PS | ✓ |
| Leak circuit therapy: CPAP, ST, PAC, iVAPS* | ✓ |
| Manual breath | x |
| Sigh breath (recruitment) | x |
| Apnoea ventilation | Volume and pressure |
| Preset programs | 2 |
| Delivered pressure (cm H2O) | 2–50 (leak circuit) 0–50 (valve circuit) |
| Delivered tidal volume (mL) | Adult: 100–2500 mL Paediatric: 50–300 mL |
| Respiratory rate | Adult: Off, 2–50 bpm Paediatric: Off, 5–80 bpm |
| SpO2 monitoring | Optional |
| FiO2 monitoring | Optional |
| On screen | 30 days of summary data Real-time pressure and flow (25 Hz) |
| ResScan (via download) | 365 days of summary data 7 days of detailed data |
| Weight | 3.2 kg |
| Dimensions (L x W x H) | 285 mm x 215 mm x 93 mm |
| Sound power level | 43 ± 3 dBA** |
| Sound pressure level | 35 ± 3 dBA** |
| * iVAPS therapy mode is indicated for patients weighing 30 kg and above | |
| ** As measured according to IEC80601-2-12:2011 |
What’s Included in the Box
- Astral 100 Ventilator Unit
- Power Supply Adapter
- Battery Pack (Internal)
- User Manual
- Carry Bag
Product Video
7. Frequently Asked Questions
Is the Astral 100 Non-Invasive and Invasive Life Support Ventilator suitable for home use?
Yes, it is specifically designed for both home and hospital use with a portable design and easy interface.
Can this ventilator be used for both invasive and non-invasive ventilation?
Yes, it supports both ventilation types, making it highly versatile for different medical conditions.
How long does the battery last?
The device offers extended battery support with internal and optional external batteries for long usage.
Is it compatible with CPAP masks?
Yes, it can be used with compatible non-invasive masks depending on the therapy setup.
Does it provide real-time monitoring?
Yes, it offers advanced monitoring features to track patient parameters continuously.
Why Choose the Astral 100 Non-Invasive and Invasive Life Support Ventilator?
The Astral 100 Non-Invasive and Invasive Life Support Ventilator stands out as a premium life support system designed for flexibility, reliability, and advanced care. It is an excellent choice for patients requiring continuous respiratory support with minimal interruptions.
Whether used in a hospital ICU or at home, this ventilator ensures:
- Consistent airflow and precise therapy delivery
- Seamless transition between ventilation modes
- Enhanced patient comfort and compliance
- Reliable performance during power failures
Who Should Use This Ventilator?
- Patients with chronic respiratory diseases
- Individuals requiring long-term ventilation
- Post-surgical respiratory care patients
- Neuromuscular disorder patients
