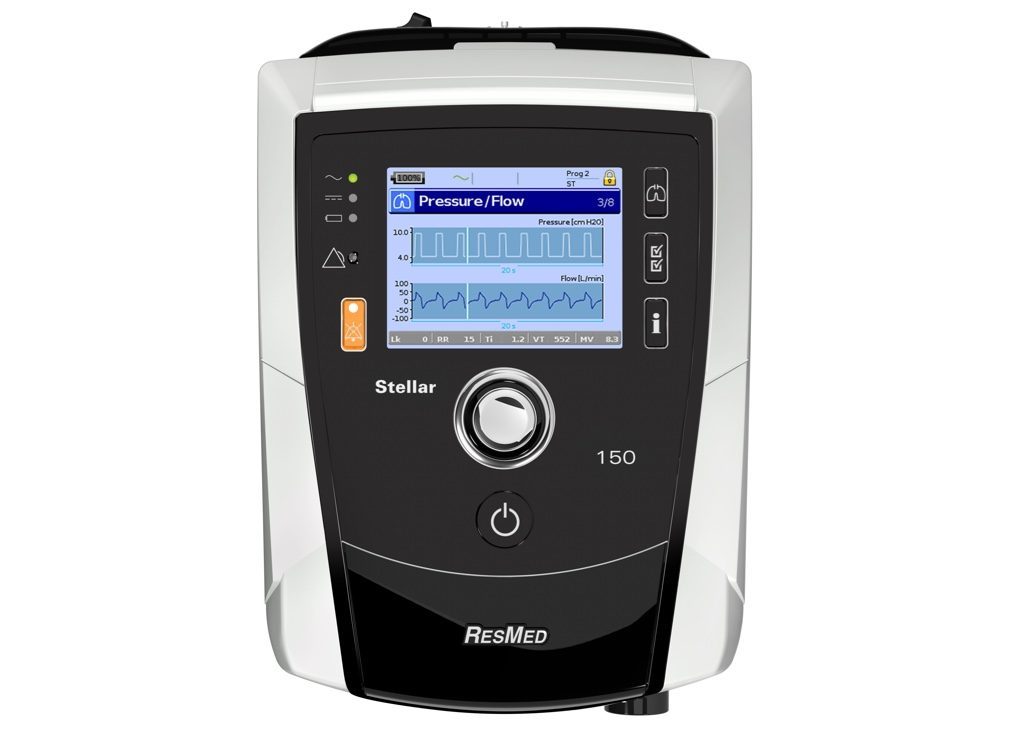

The Resmed Stellar 150 Noninvasive Ventilator is a versatile, compact noninvasive ventilator designed to provide personalized respiratory support for patients with chronic respiratory conditions. Suitable for both invasive and noninvasive ventilation, the Stellar 150 delivers high performance in hospital, home, and mobile settings.
🔧 Key Features
-
Dual Functionality: Supports both invasive and noninvasive ventilation for greater clinical flexibility.
-
Versatile Usage: Ideal for conditions like COPD, NMD (neuromuscular disease), OHS (obesity hypoventilation syndrome), and more.
-
Wide Pressure Range: IPAP up to 40 cm H₂O and EPAP up to 25 cm H₂O.
-
Multiple Modes: Includes CPAP, S, ST, PAC, iVAPS, and T modes.
-
iVAPS with AutoEPAP: Maintains target alveolar ventilation while automatically adjusting pressure support and EPAP.
-
Mobility Friendly: Internal battery lasts up to 2 hours; external battery options available for extended use.
-
Real-time Monitoring: Detailed monitoring of tidal volume, minute ventilation, leak, and SpO₂ when connected to compatible pulse oximeters.
-

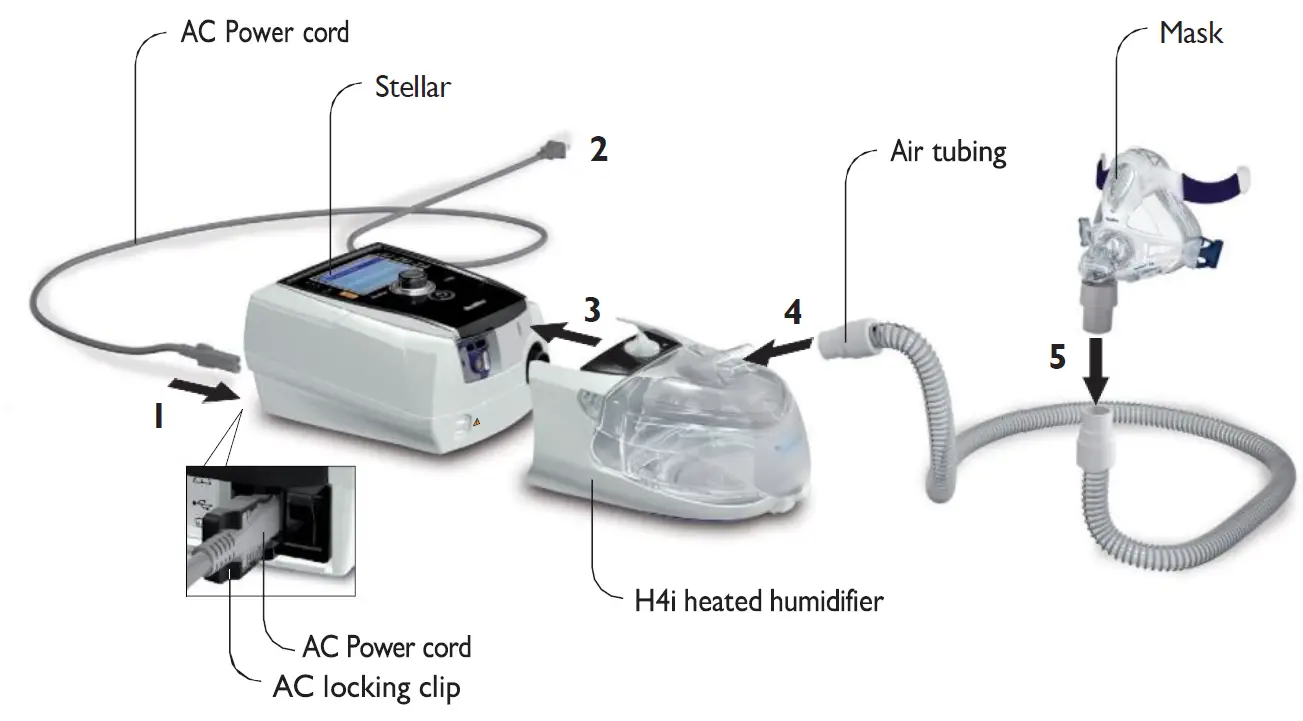

Humidifier Compatible: Works with ResMed’s H4i or H5i heated humidifiers for enhanced comfort.
ResMed Stellar 150 – Specifications Table
| Category | Details |
|---|---|
| Device Type | Noninvasive and Invasive BiLevel Ventilator |
| Therapy Modes | CPAP, S, ST, T, PAC, iVAPS with AutoEPAP |
| Pressure Range | EPAP: 2–25 cm H₂O |
| IPAP: 4–40 cm H₂O | |
| Target Ventilation | iVAPS – Intelligent Volume-Assured Pressure Support |
| Respiratory Rate | 5–60 breaths/min |
| Trigger Sensitivity | Adjustable (Flow-based) |
| Ramp Feature | Yes, adjustable |
| Leak Compensation | Yes |
| Patient Type | Adult and Pediatric (≥13 kg) |
| Data Storage | 365-day summary data |
| 7-day high-resolution data | |
| Display | Color LCD screen |
| Alarms | Audible and visual alarms for disconnection, power failure, high/low pressure |
| Humidification | Optional with H4i / H5i heated humidifiers |
| Weight | Approx. 2.1 kg |
| Dimensions | 230 mm × 170 mm × 120 mm |
| Power Supply | 100–240V AC, 50–60Hz |
| Internal battery: Up to 2 hours | |
| External Battery | Yes, available (ResMed Power Station II – optional) |
| Connectivity | SD card for ResScan data download |
| Oximetry Support | Yes, with compatible pulse oximeter (optional accessory) |
| Noise Level | < 35 dBA |
| Usage Environment | Home care, hospital, transport, nursing facilities |
📦 What’s in the Box
-
ResMed Stellar™ 150 Ventilator
-
Power supply and cable
-
Carry bag
-
User manual
-
Optional: humidifier, circuit accessories
❓ FAQs – ResMed Stellar 150
🔸 Q1: Who should use the Stellar 150 ventilator?
A: The Stellar 150 is ideal for patients with chronic respiratory failure due to conditions like COPD, neuromuscular disorders (e.g., ALS), obesity hypoventilation syndrome, and restrictive thoracic disorders.
🔸 Q2: Is the Stellar 150 suitable for home use?
A: Yes, it’s designed for both hospital and home environments. It’s portable, quiet, and can be used with an external battery for mobile therapy.
🔸 Q3: What is iVAPS with AutoEPAP?
A: iVAPS (intelligent Volume-Assured Pressure Support) automatically adapts pressure support and EPAP levels to maintain a consistent alveolar ventilation target—ensuring optimal breathing support, even as your condition changes.
🔸 Q4: Does it support invasive ventilation?
A: Yes, Stellar 150 supports invasive ventilation via tracheostomy tubes, in addition to noninvasive ventilation via full-face or nasal masks.
🔸 Q5: Can I view therapy data?
A: Yes, it stores detailed therapy data (365-day summary, 7-day high resolution) which can be accessed using ResScan software via SD card.
🔸 Q6: What happens if power fails?
A: The device includes an internal battery (approx. 2 hours) and can be connected to an external battery pack for longer backup.
🔸 Q7: Is it suitable for children?
A: Yes, the Stellar 150 is approved for pediatric use in patients weighing 13 kg and above.
