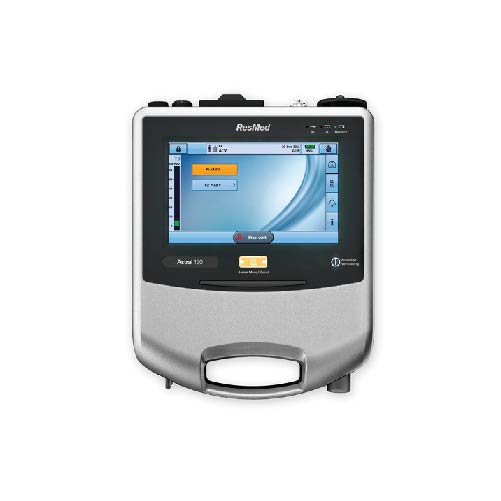

Resmed Astral 150 Portable Ventilator delivers excellence in leak and valve ventilation for invasive and non invasive applications as well as providing a full suite of therapy modes to suit adult and pediatric applications. With easy setup, simple servicing and an intuitive interface, Astral is designed to make ventilation support straightforward and efficient
Resmed Astral 150 Portable Ventilator Features:
- Comes with all the standard features of Astral 100, plus FiO2 monitoring and double limb circuit capabilities
- Offers an impressive power-to-weight ratio
- Easy learning curve for clinicians and caregivers
- Responsive algorithms deliver adaptive, personalized ventilation as the disease progresses
- ResMed Astral™ features remote monitoring capabilities and up to 16 hours of continuous portable power.
- Easy to use: easy to operate due to its intuitive interface and user-friendly features, including big button technology, program naming options and quick setup assistant.
- So smart, yet so simple: Astral features simple, yet sophisticated technologies for both invasive and non-invasive ventilation. One versatile ventilator provides flexible therapy options, including ResMed iVAPS™ with optional AutoEPAP, a mode well-suited for COPD patients. And with its remote patient monitoring capabilities.
Resmed Astral 150 Portable Ventilator Specifications:
| Indications for use | Life support for patients over 11 lbs (5 kg) |
|---|---|
| Single circuit with leak | √ |
| Single circuit with valve | √ |

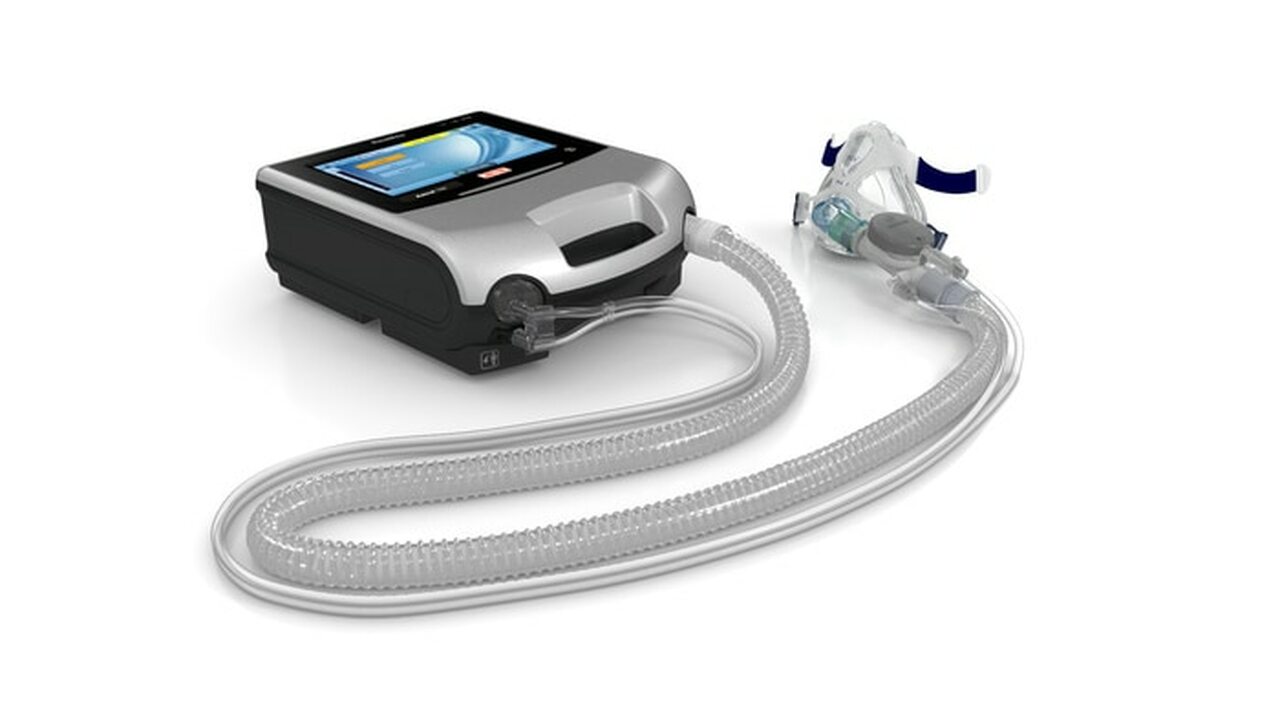

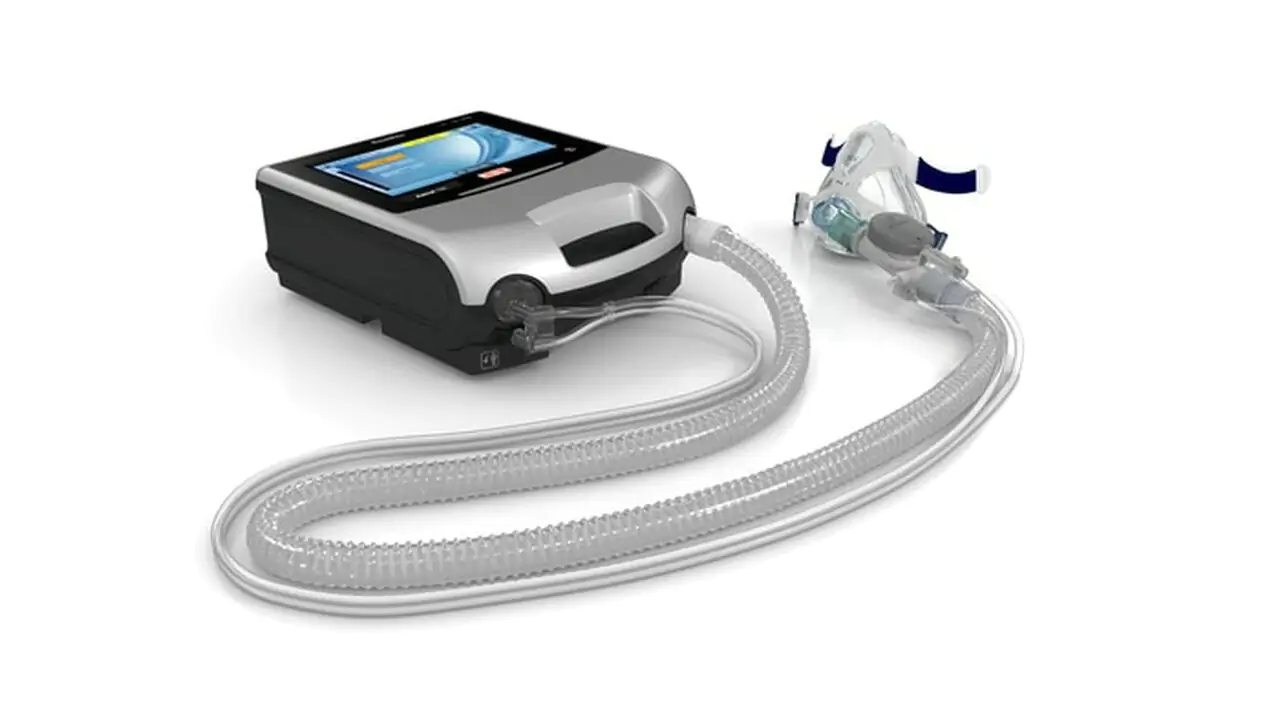

| Double circuit | √ |
| Valve circuit therapy: CPAP, (A)CV, P(A)CV, P-SIMV, V-SIMV, PS | √ |
| Leak circuit therapy: CPAP, (S)T, P(A)C, iVAPS3 and optional AutoEPAP4 | √ |
| Mouthpiece ventilation therapy: (A)CV , P(A)CV, PS/SVt | √ |
| Manual breath | √ |
| Sigh breath (recruitment) | √ |
| Apnea ventilation | Volume and pressure |
| Preset programs | 4 |
| Delivered pressure (cmH2O) | 2–50 (leak circuit) & 0–50 (valve circuit) |
| Delivered tidal volume (mL) | Adult: 100–2500 mL & Pediatric: 50–300 mL |
| Respiratory rate | Adult: Off, 2–50 bpm & Pediatric: Off, 5–80 bpm |
| SpO2 monitoring | Optional |
| FiO2 monitoring | |
| On screen | 30 days of summary data & Real-time pressure and flow (25 Hz) |
| ResScanTM (via download) | 365 days of summary data & 7 days of detailed data |
| AirViewTM (RCM required) | 365 days of summary data & 7 days of detailed data |
| ALARMS | A WIDE RANGE OF SETTABLE ALARMS ARE AVAILABLE INCLUDING FIO2 AND SPO2 WHEN CONNECTED |
| Weight | 7.1 lbs (3.2 kg) |
| Dimensions (L x W x H) | 285 mm x 215 mm x 93 mm |
| Internal battery | Lithium-Ion battery, 14.4 V, 6.6 Ah, 95 Wh. 8 hours of backup power |
| Sound power level | 43 +/- 3 dBA: as measured according to ISO 80601-2-12:2011 |
| Sound pressure level | 35 +/- 3 dBA: as measured according to ISO 80601-2-12:2011 |
