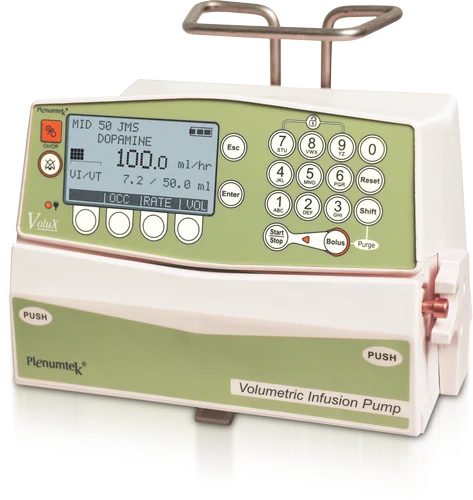

Plenumtech Volux Volumetric Infusion Pump is a digital and self-regulated volume controlled portable volumetric infusion pump suitable for all intravenous and intra-arterial infusion.
Plenumtech Volux Volumetric Infusion Pump Features:
- Volumetric Infusion System
- Light Weight
- Capacitive Touch Screen Key Pad
- Ergonomic & Leak Proof design
- Stack ability
- LCD Display
- Vertical / Horizontal Mounting
- Provision to calibrate 13 more brands
Plenumtech Volux Volumetric Infusion Pump Specifications
| Specification | Value |
|---|---|
| Product Type | Volumetric Infusion Pump |
| Pumping Mechanism | Liner Peristaltic Pumping System |
| Dimension | 130mm (W) x 183mm (L) x 115mm (H) |
| Weight | 2.2 Kgs |
| Display Size & Type | 66mm x 33mmm Graphic LCD Monochrome |
| Parameters Displayed | Occlusion Level, IV Set Brand, Drug Name,Set Flow Rate, Infused Volume, Battery Life |
| Keypad | Capacitive Touch Screen Keypad |
| Fixation | Allows both Horizontal & Vertical Mounting |
| Stack ability | For interlocking of two or more units |
| Power Source | 110/220 VCA (+/- 20%), 50/60 Hz, 12 VA |
| Battery | 7.2 Volts Rechargeable NiMh battery |
| Battery Capacity | Minimum 3.5 hrs @ 25 ml/hr * |
| Battery Recharging time | 16 hrs |
| Battery Status | Display in Bars OR hrs. and min. |
| Power Saver | Auto back light off to save battery |
| Operating Temp | 05 to 40 oC |
| Relative Humidity | 15 o 90% (no condensation) |
| Atmospheric Pressure | 70 to 106 Kpa |
| Alarms | BBRaun, JMS, Romson, Polymed |
| Flow Rate | 0.1 to 1200 ml/hr (increment in step of 0.1 ml/hr) |
| Purge | Upto 1200 ml/hr |
| Facility for Online Titration 3Modes | Mandatory/ Non Mandatory/ Advised |
| Rate | Upto 1200 ml/hr |
| Bolus Type | Expressed by means of flashing message on the |
| Set Installation | Door Open, Occlusivity Check |
| Device Control | No Mains, Battery Pre-alarm & Alarm, Idle, Technical Malfunction, Unconfirmed |
| Priming | Programming, Preventive Maintenance |
| Infusion control | Occlusion Upstream & Downstream, Infusion End Pre-alarm & Alarm, KVO/KOR, Container Empty |
| Keypad Locking | Restricts accidental change of the infusion parameters |
| Bolus Rate | Upto 1200 ml/hr |
| Bolus Volume | 0.1ml to 99.9 ml |
| Bolus Indicator | Beep after infusion of every 0.5/1 ml bolus volume |
| Infusion Modes | Rate ml/hr (0.1ml/hr incr.), Volume Limit 0.1-6500.0 ml (0.1ml incr.) |
What are Volumetric Infusion pump?
A volumetric infusion pump, also known as an IV pump or infusion pump, is a device used to deliver fluids, medications, or nutrients into a patient’s bloodstream at a controlled rate. These pumps are commonly used in hospitals, clinics, and other healthcare settings.
Volumetric infusion pumps work by using a motorized mechanism to deliver fluids from an IV bag or container through an administration set and into the patient’s vein. The pump can be programmed to control the infusion rate, volume, and duration of the infusion. This allows healthcare professionals to accurately deliver fluids or medications according to the patient’s needs.
Some common features of volumetric infusion pumps include:
- Flow Rate Control: The pump allows precise control over the infusion rate, typically measured in milliliters per hour (mL/hr) or drops per minute (gtts/min). This ensures the medication or fluids are delivered at a consistent and controlled rate.
- Volume Limitation: The pump can be set to deliver a specific volume of fluid or medication. Once the programmed volume is infused, the pump will stop or trigger an alarm.
- Alarm Systems: Infusion pumps often have built-in safety features and alarms to alert healthcare providers if there is a problem with the infusion, such as occlusion (blockage) in the IV line, low battery, or completion of the infusion.
- Bolus Mode: Some pumps have a bolus mode that allows for the rapid delivery of a larger volume of fluid or medication over a short period. This is often used for emergency situations or when a higher dose is required.
