Philips HeartStart OnSite Replacement Pads Cartridge
HeartStart OnSite Adult SMART Pads are appropriate for cardiac arrest victims and available in 2 variants:

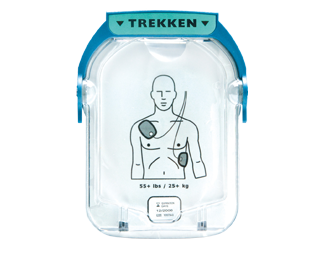

- M5071A – Adult Pads for users weighing 55 pounds (25 kg) or more.

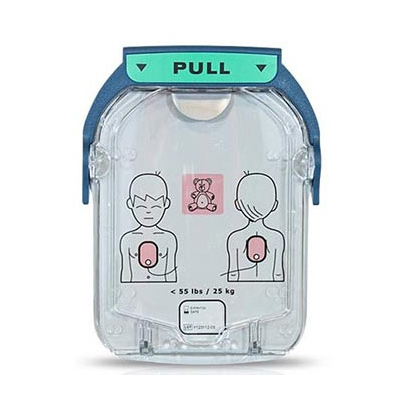

- M5072A – Pediatric Pads for children under 8 years of age or weighing less than 55 pounds (25 kg), including infants.
Philips AED pads must be replaced after use or once every 2 years regardless of use. An expiration date is marked on the front of the pads cartridge.
How to replace Philips HeartStart OnSite Replacement Pads Cartridges?
- Remove new pads cartridge from its package
- Release and remove the old pads cartridge by locating the latch on top of the OnSite unit and sliding it
- Insert new pads cartridge by sliding the bottom end of the cartridge into the recess and then pressing down firmly until the latch clicks into place.
- Once the pads have been fully inserted, the OnSite unit will inform you that pads have been inserted and that it is ready for use.
*NOTE: DO NOT PULL THE PADS CARTRIDGE HARD COVER OR FILM SEAL UNTIL READY FOR ACTUAL USE. IF HARD COVER IS ACCIDENTALLY OPENED, COVER IMMEDIATELY TO PREVENT ADHESIVES FROM DRYING. ONCE PAD ADHESIVES HAVE BEEN EXPOSED, YOU WILL NEED TO REPLACE THE ENTIRE PADS CARTRIDGE
Additional Information:
- Compatible with Philips Ref. No.: M5066A, M5067A, M5068A
- Cartridge contains (2) adhesive electrode pads
- Pads should be replaced after each use, or once every (2) years
