Features of Philips Efficia DFM100 Defibrillator:

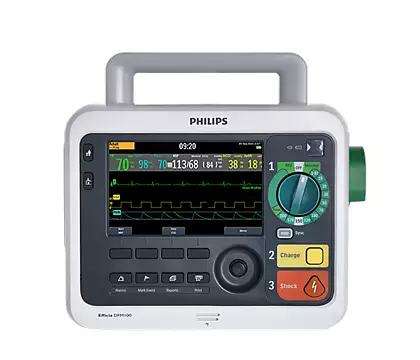

The Efficia DFM100 defibrillator/monitor is designed so you can meet the demands of patient care in the pre-hospital and hospital environment effectively and consistently. With field-proven Philips technology, the Efficia DFM100 offers core functionality with a scalable feature set and improved cost of ownership, allowing you to enhance patient care, no matter where the patient is located. The Efficia DFM100 offers below features:
• The delivery of a 150J shock (recommended adult energy level) within 5 seconds – using the same Philips SMART biphasic therapy as our premium HeartStart family of defibrillators.
• Can be used on both adult and infant/child patients for defibrillation, monitoring, synchronized cardioversion or pacing. It even has a single paddle set for adult or infant/child patients, so care providers have no extra checks to know they have the right equipment.
• A Patient Category button which allows clinicians to quickly switch between patient categories, automatically changing parameter limits, analyzing rhythms and prompting the user to deliver a shock, if appropriate.
• An optional AED mode (including infant/child AED capability) that uses Philips SMART Analysis algorithm to guide basic life support providers through delivering defibrillation, with the quick and easy 1-2-3 operation pioneered by Philips, and used on all Philips AEDs.
• Optional parameters (SpO2, NBP, EtCO2 ) for continuous monitoring of patient vital signs.
• A Patient Contact Indicator on the paddles to give immediate feedback on paddle placement and contact to enhance the confidence of the life support provider.
Specifications of Philips Efficia DFM100 Defibrillator:
| Approximate Dimensions |
23.5 cm (H) x 29 cm (W) x 20.5 cm (D);9.25 in (H) x 11.4 in (W) x 8 in (D)
|
| Approximate Weight (without battery) |
5.66 kg; 12.5 lbs
|
| Standard Operator Position |
Within one meter (3 feet) of the device
|
Display:
| Type |
Color TFT LCD
|
| Size |
Approximately 7 in (17.8 cm) diagonal viewing area
|
| Resolution |
800 x 480 pixels (VGA) with 32 brightness levels per color
|
Defibrillator:
| Waveform |
Biphasic Truncated Exponential; waveform parameters adjusted as a function of patient impedance
|
| Shock Delivery |
Via multifunction electrode pads or paddles
|
| Charge time |
• Less than 5 seconds to the recommended adult energy level (150 Joules) with a new, fully-charged battery installed • Less than 6 seconds to the selected energy level (up to 200 Joules) with a new, fully charged battery installed • Less than 15 seconds to the selected energy level while connected to AC power only • The device powers on in manual defibrillation mode ready to deliver shock in less than: • 15 seconds with a new, fully-charged battery • The device powers on in AED mode ready to deliver shock in less than: • 24 seconds with a new, fully-charged battery even after 15 discharges of maximum energy |
| Shock Series |
Configurable energy escalation in a series Leads Off Sensing and PCI
|
| Power |
Rechargeable Lithium Ion battery; AC power using a protectively grounded outlet
|

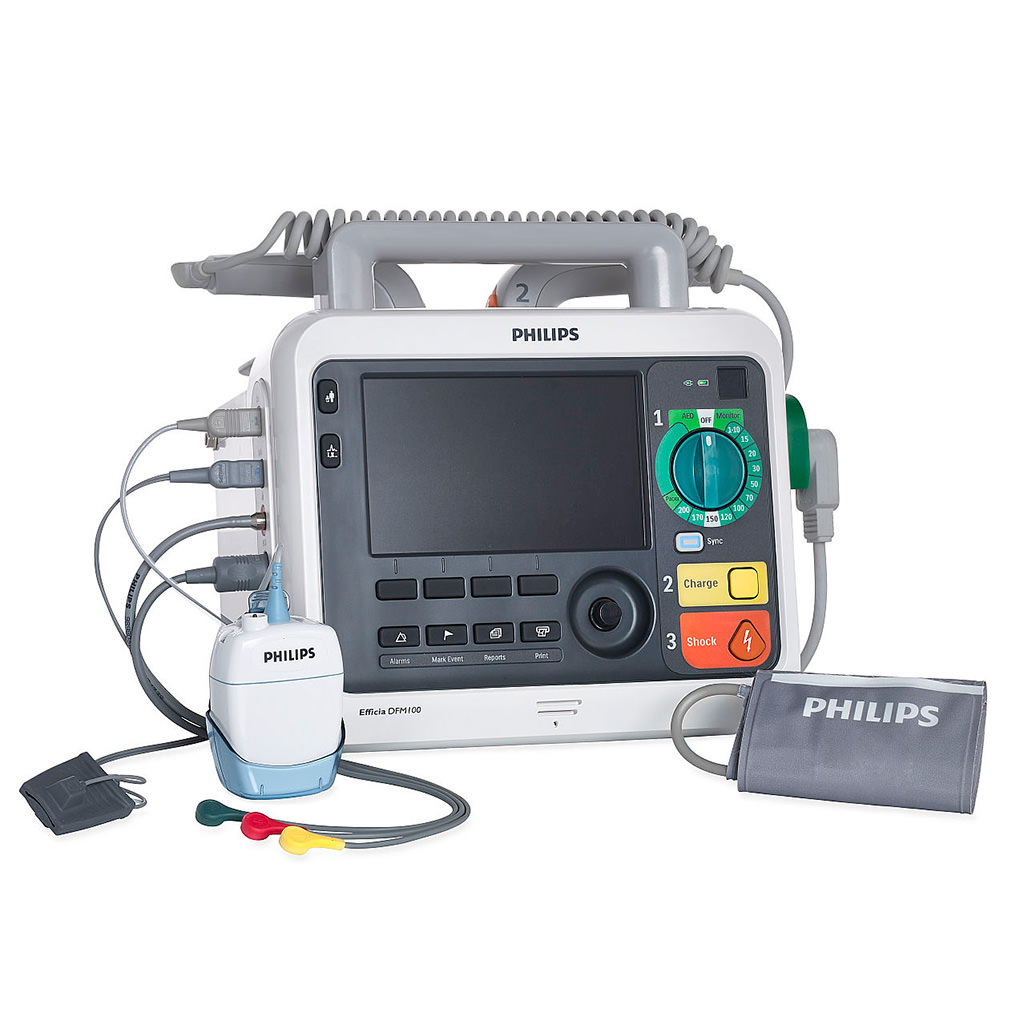

Package Contents of DFM100 Defibrillator :-
- Main Unit (Defibrillator)
- AC power cord
- Lithium-ion battery
- Pads cable with test plug
- 1 sleeve of paper (4 rolls)
- 1 package of electrodes
- User Documentation CD
- Printed Quick Reference Card
- User Training DVD
- Service Manual CD
