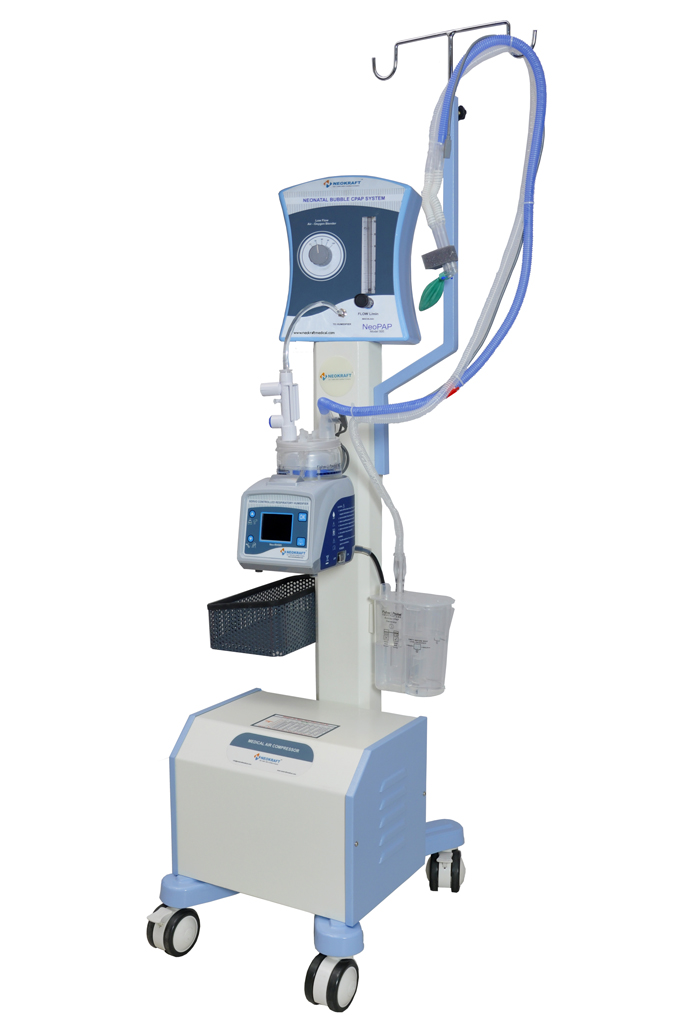

NeoKraft NeoPAP 505 Infant Bubble CPAP

NeoKraft NeoPAP 505 Infant Bubble CPAP Servo Humidifier

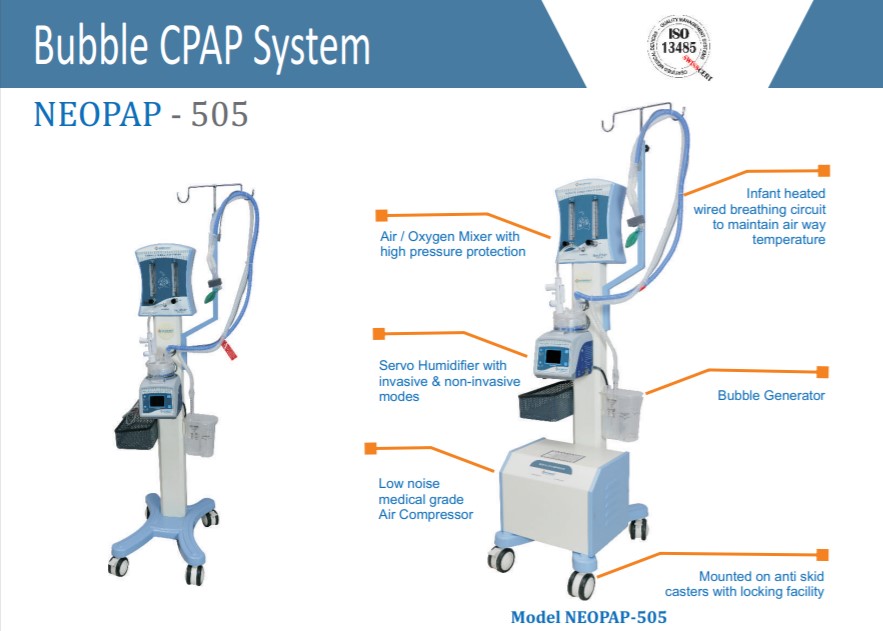

Neokraft NeoPAP 505 Bubble CPAP unit is full featured NICU equipment to meet neonatal critical care requirements for New-born baby those with spontaneous breathing infants requiring respiratory support. Neokraft NeoPAP 505 is a complete system providing perfect delivery of FIO2 with inbuilt Air / Oxygen Blender, Bubble generator with pressure manifold, heated breathing circuit and inbuilt medical grade Air compressor.

Servo Humidifier Compatible for neonate to adult patients with Invasive & Non-invasive modes.

Blender Compact and unique Air / Oxygen blender to maintain perfect FIO2 from 21% to 100%. Oxygen flow directly can be connected to central pipe line or through flow meter regulator easy to use

Air Compressor Low Noise Medical grade oil free low pressure Air compressor with bacteria filter, Maximum flow 15L/minute, High pressure relief value protection with constant air flow to the blender

Bubble Generator CPAP Bubble generator with adjustable CPAP from 3 to 10 cmH2O, water chamber ease to fill and remove mounted on side of the stand

Packing Check List for Bubble CPAP Neo 505:

• Servo Humidifier Model RH 505 x1
• Humidifier Heater wire adapter cable x1
• Humidifier temp sensor cable x1
• Bubble Chamber with pressure gauze x1
• Patient Tubing Set Inspiratory & Exploratory x2
• Humidifier Chamber x2
• Nasal Tubin BC191 x1
• Nasal Mask small BC801 x1
• Nasal Mask regular BC802 x1
• Nasal prong small BC3020 x1
• Nasal Prong regular 80520 x1
• Infant Head Bonnet BC306 x1
• Infant Head Bonnet BC309 x1
• Test Lung x1
• Blender Assemly x1
• Oxygen hose tubing with connector x1
• Air hose Tubing x1
• Humidifier to Blender Green tube x1
• Mains card x1
• User manual x1
• Air compressor x1
