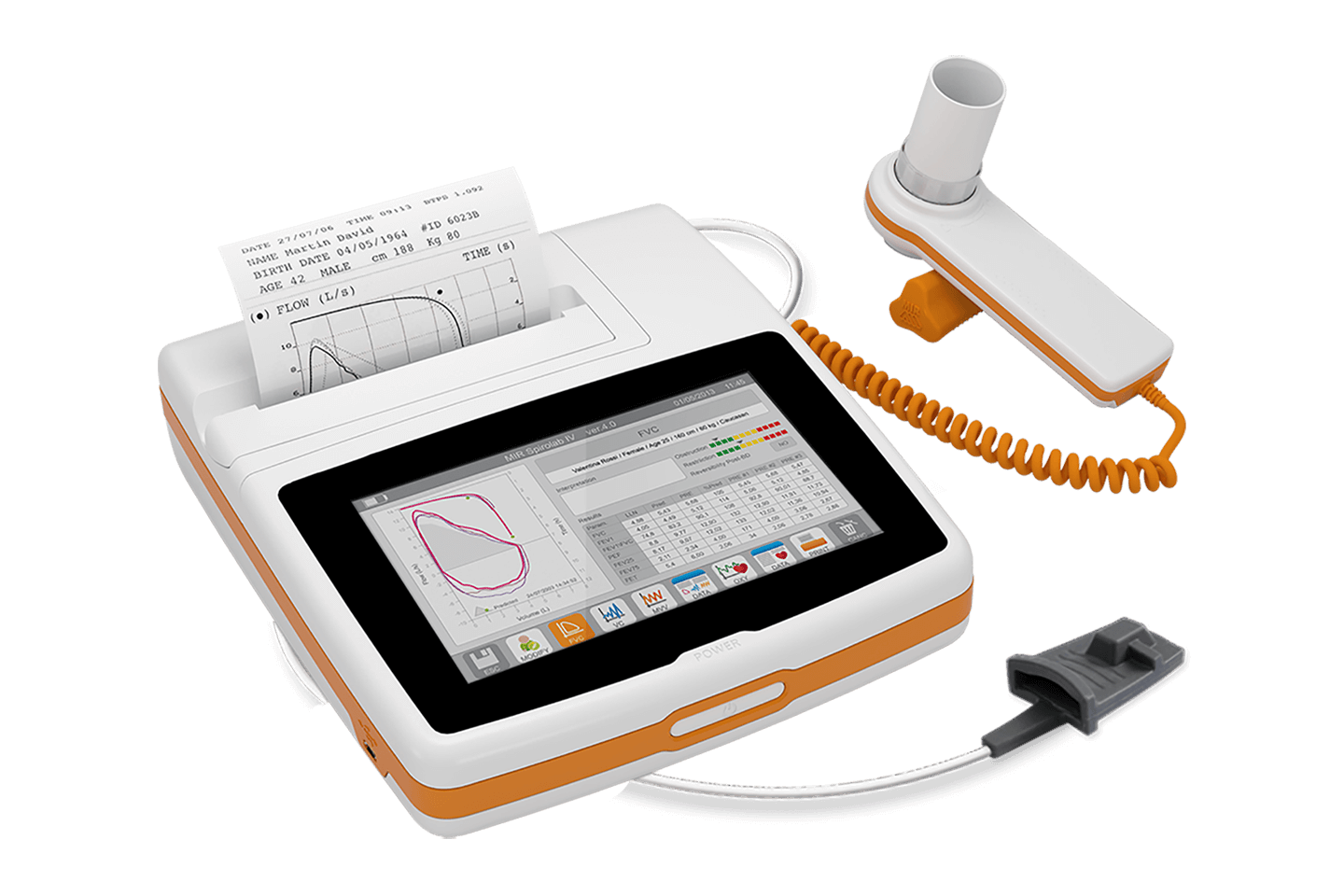

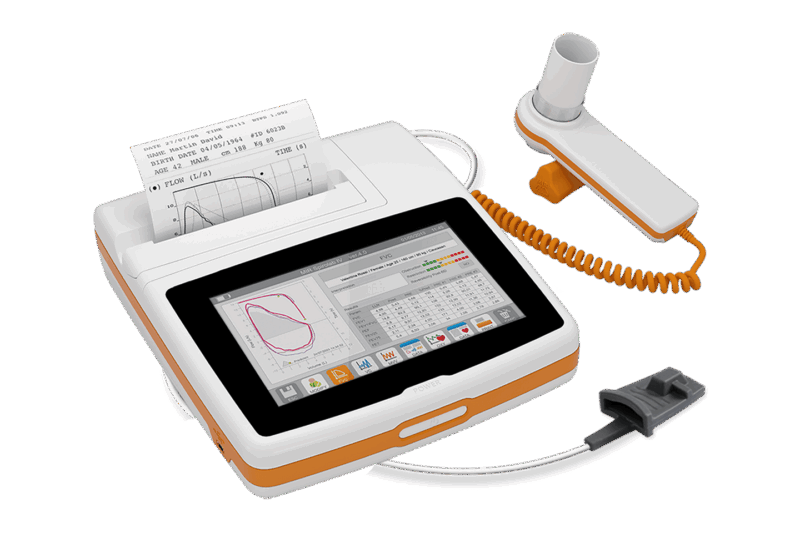

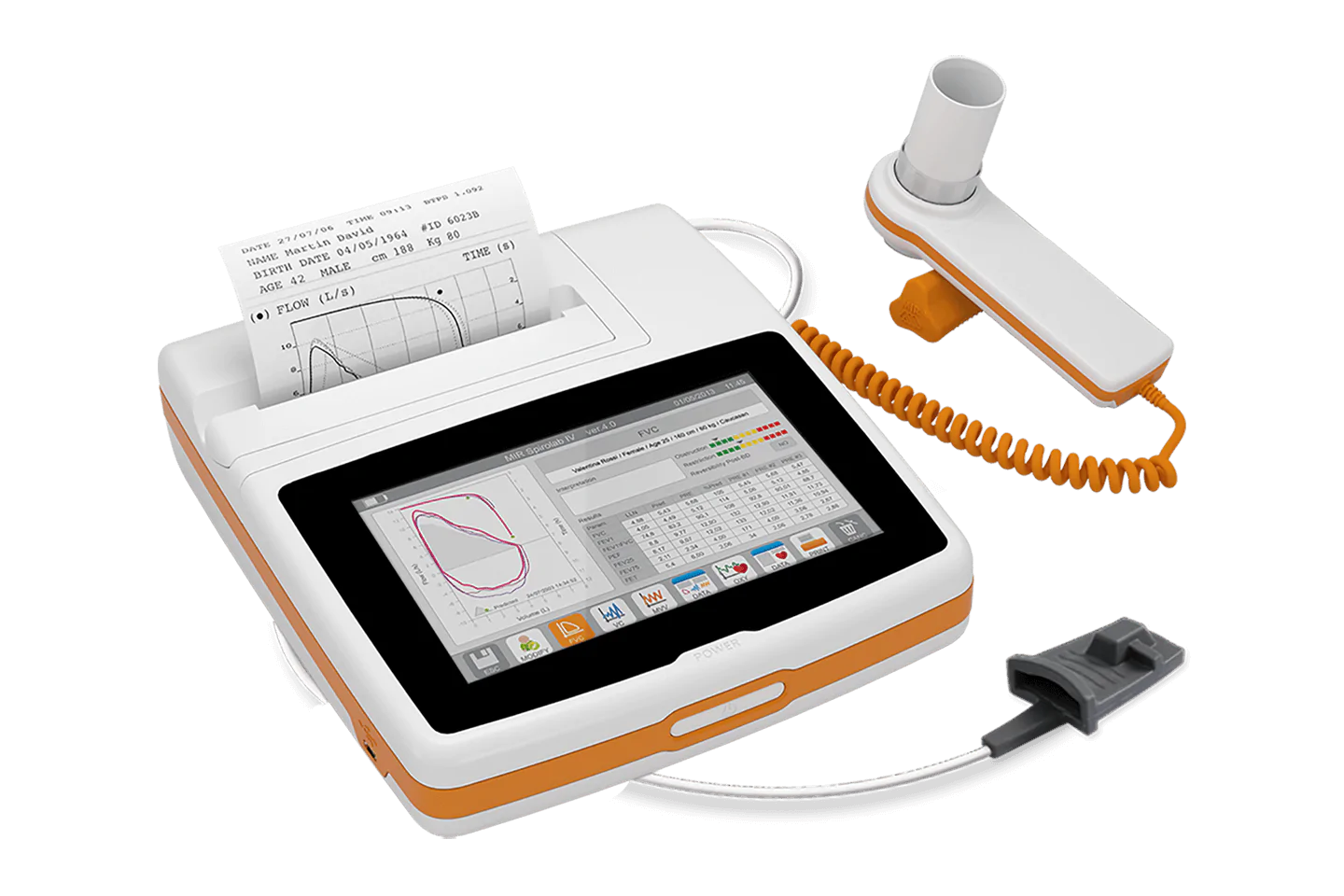

MIR Spirolab Touch Screen Portable Desktop Spirometer, also known unofficially as Spirolab 4, features a seven-inch TFT touch screen and a long-life rechargeable battery that makes it ideal for mobile and office spirometry.
- FVC, FEV1, IVC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters
- Pediatric Incentive for Spirometry
- Built-in printer with customizable printout format

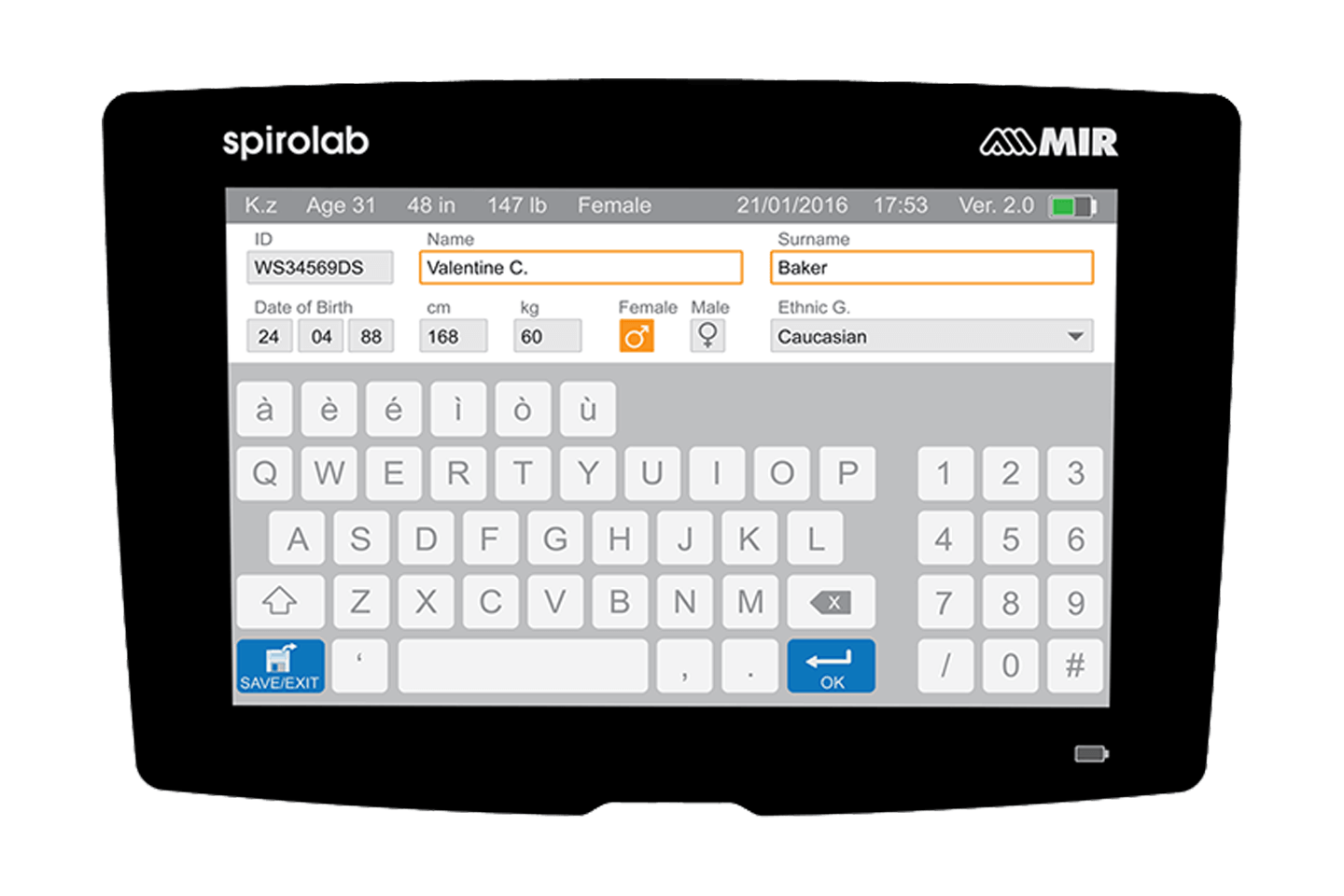

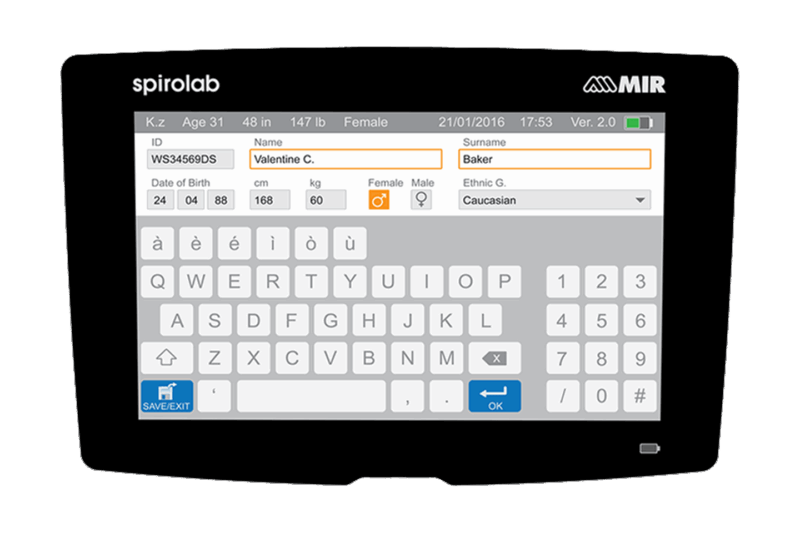

- 7-in TFT color, touchscreen
- Store up to 10,000 spirometry tests or 900 hours of oximetry recording

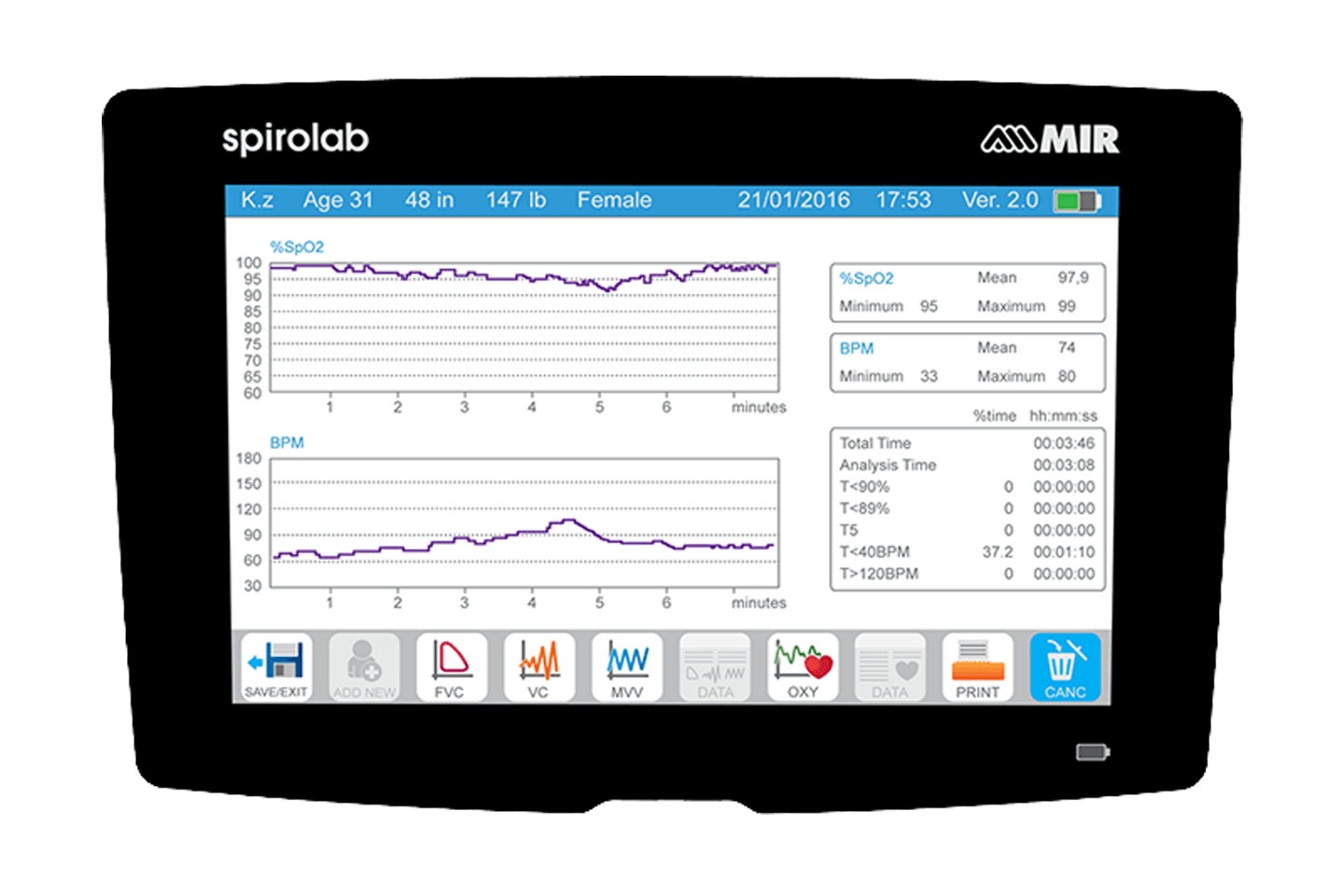

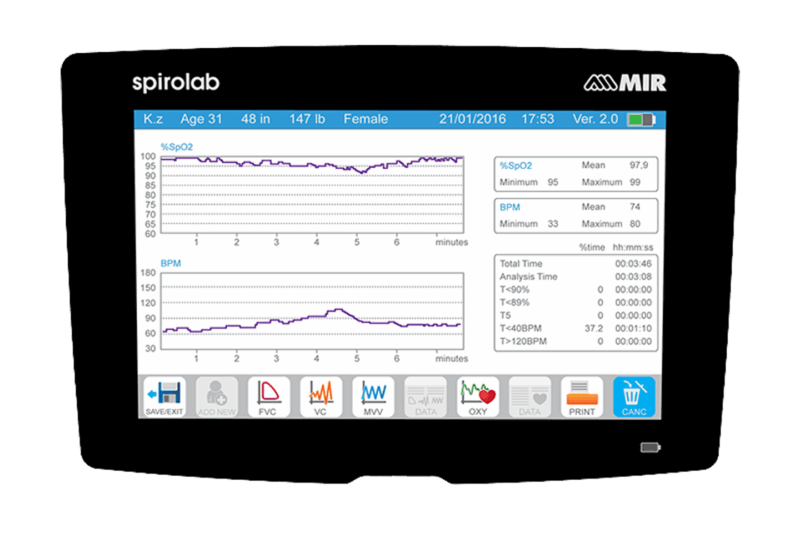

- Optional pulse oximetry
- Long-life rechargeable battery
- Winspiro PRO® PC software
- Bluetooth® 2.1 and USB connectivity

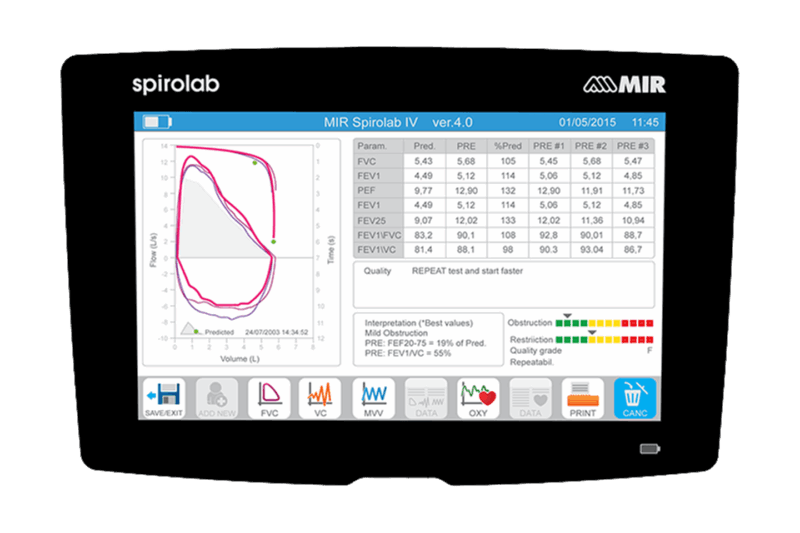

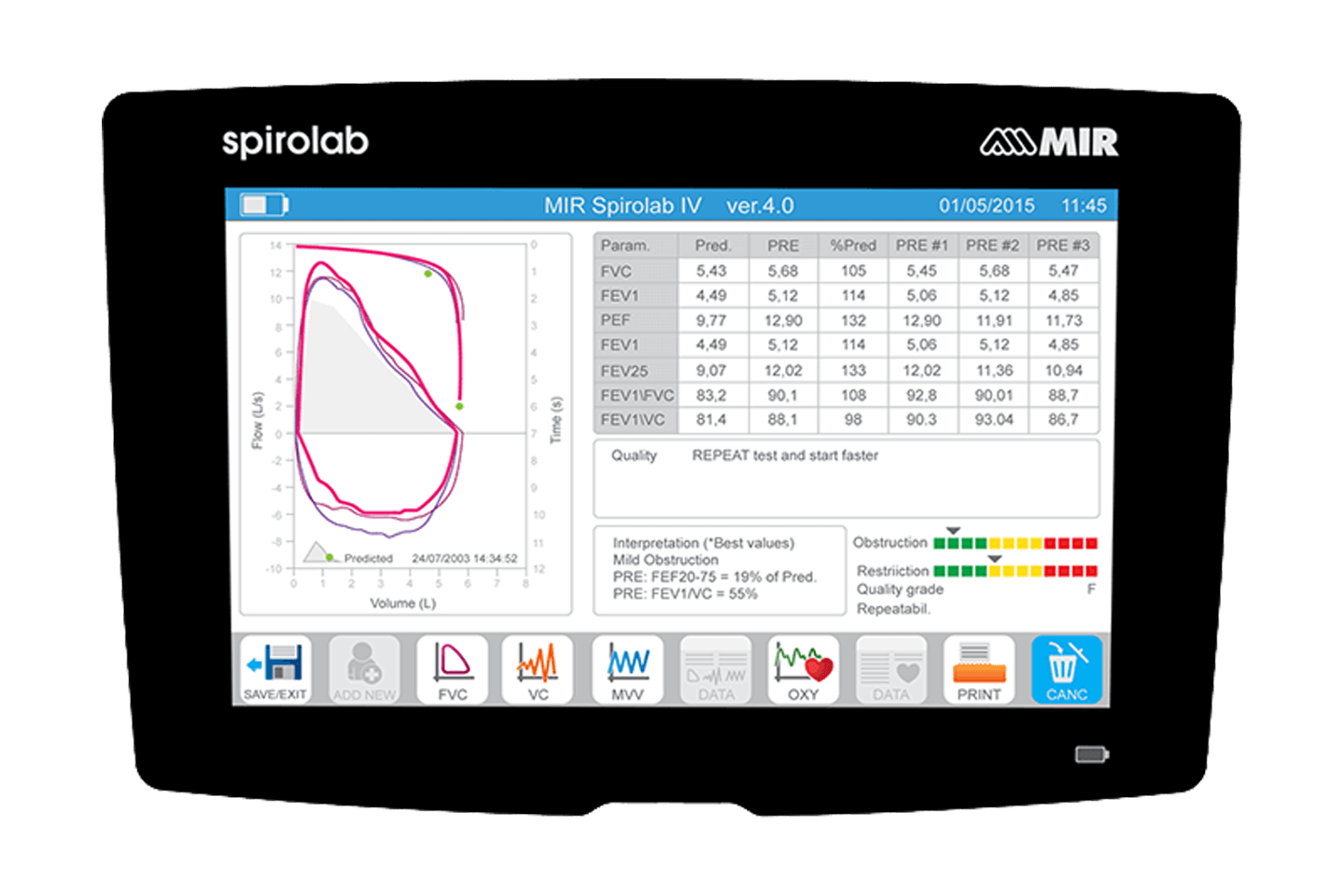

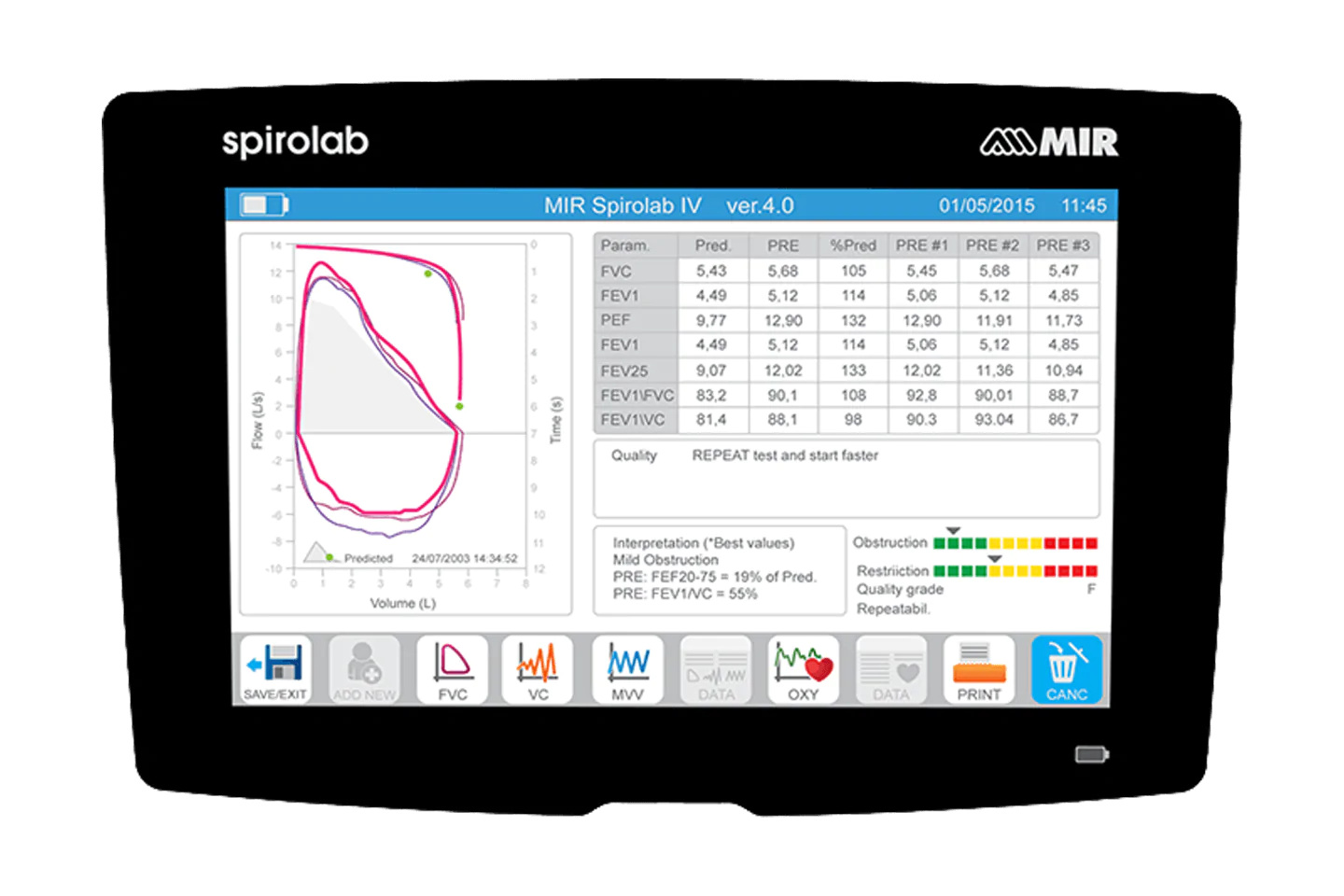

- Real-time curves with PRE/POST Bronchodilator comparison
- Wireless or via cable Real Time test directly on your PC
- Quanjer 2012-GLI Predicted values with LLN and Z-score
- EMR integration
MIR Spirolab Touch Screen Portable Desktop Spirometer Technical Specifications:
Power supply: Rechargeable battery and mains power
Temperature sensor: semiconductor (0-45°C)
Flow sensor: bi-directional digital turbine
Flow range: ±16L/s
Volume accuracy: ±3% or 50mL
Flow accuracy: ±5% or 200mL/s
Dynamic resistance: <0.5 cmH2O/L/s
Connectivity: USB 2.0, Bluetooth®
2.1 Display: 7inch colour touch screen LCD,
800×480 resolution
Spirometry parameters:
FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrapolated
Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC,
FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/ FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50,
VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV
(calculated).
