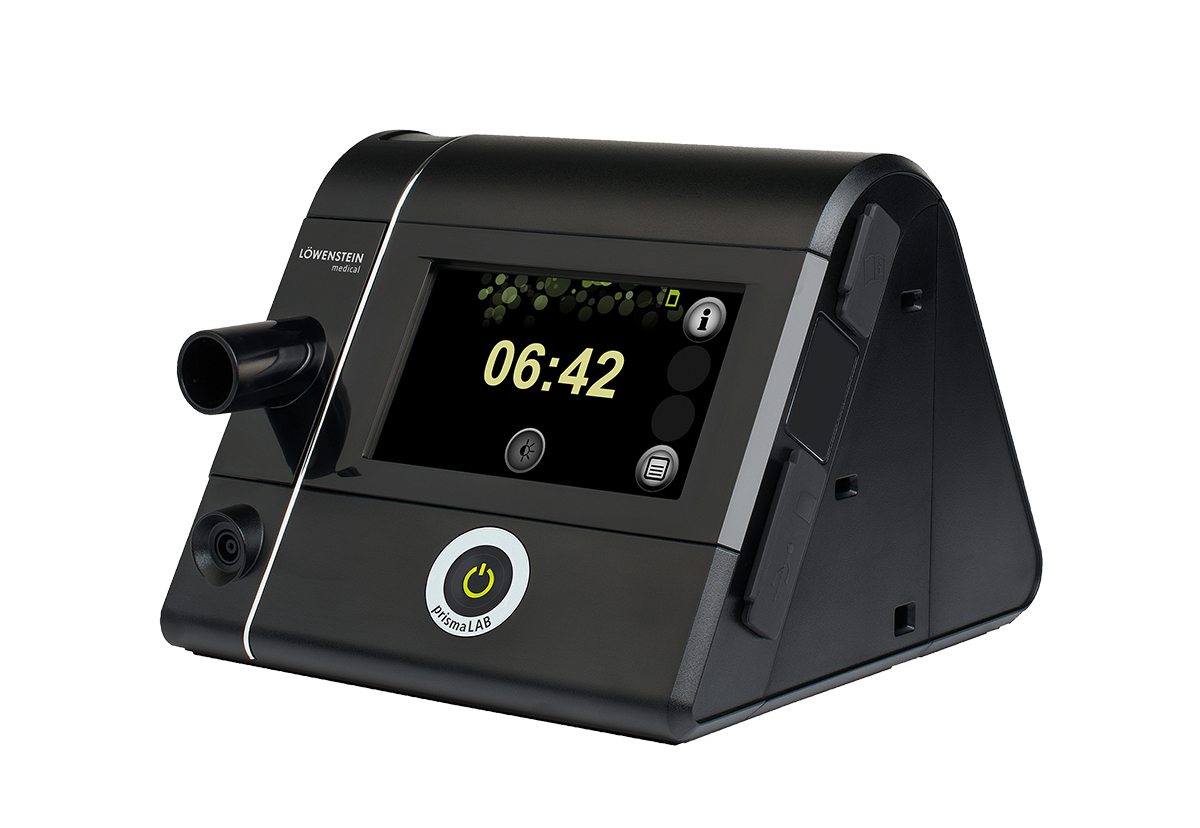

Lowenstein PrismaLab Bipap offers all modes and attributes required for titration in a single device.
Lowenstein PrismaLab Bipap Features:
- Modes: CPAP, APAP, AcSV, S, autoS, S/T, autoS/T, T, aPCV
- Continued therapy and soft pressure transitions at change of mode during the night
- Continuous check of mask fit, automatic mask recognition and mask test
- High resolution therapy data for up to 14 days and detailed statistics for 366 days
- Therapy software prismaTS for data analysis and remote control
- With SD card and USB port
- Telemedicine connection via modem for prisma CLOUD
- Eight clearly identified analog signals for PSG feed
- Intelligient humidification without extra sensors provided by smartAQUAcontrol (with use of
prismaAQUA) - Comfort functions such as autoSTART-STOP and softSTART
- Heated breathing tube prismaHYBERNITE
- Easy-to-use accessories
Lowenstein PrismaLab Bipap Specs:
| Parameter | Value |
|---|---|
| Modes | CPAP, APAP, AcSV, S, autoS, S/T, autoS/T, T, aPCV |
| Mean sound pressure level/Operation ISO 80601-2-70 | about 26.5 dB(A) at 10 hPa |
| CPAP/APAP operating pressure range | 4 to 20 hPa |
| BILevel operating pressure range | 4 to 30 hPa |
| AcSV operating pressure range | 4 to 30 hPa |
| Relative inspiration time: Ti/Tset | 25% to 67% |
| Trigger | auto or can be set at 3 levels |
| Pressure increase speed | can be set at three levels |
| Back up frequency | auto, 0 bpm to 35 bpm |
| Pressure accuracy | <20 hPa ± 0.6 hPa, 20 hPa ± 0.8 hPa |
| Highest flow as per ISO 80601-2-70, modes Bilevel and AcSV, without humidifier | 4.0 hPa 235 l/min 10.5 hPa 225 l/min 17.0 hPa 215 l/min 23.5 hPa 200 l/min 25.0 hPa 195 l/min 30.0 hPa 190 l/min |
| Stability of dynamic pressure (short-term accuracy) at 10 breaths/min as per ISO 17510-1:2007 with 22-mm breathing tube | 7.0 hPa Δp 0.24 hPa 10.0 hPa Δp 0.28 hPa 13.5 hPa Δp 0.30 hPa 20.0 hPa Δp 0.40 hPa |
| Dimensions (W x H x D) | 170 x 135 x 180 mm |
| Weight | about 1.4 kg |
| System interface | 12 V DC max. 10 VA |
| Alarms | leaks, disconnection (tube), apnea, low minute volume, low tidal volume |
Lowenstein PrismaLab Bipap Brochure:
Lowenstein PrismaLab Bipap Box Contents:
- PrismaLab Device
- Hose Pipe
- Filters
- Manuals
- Bag
