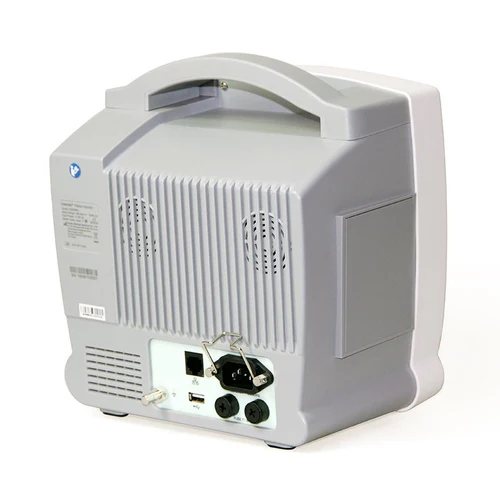

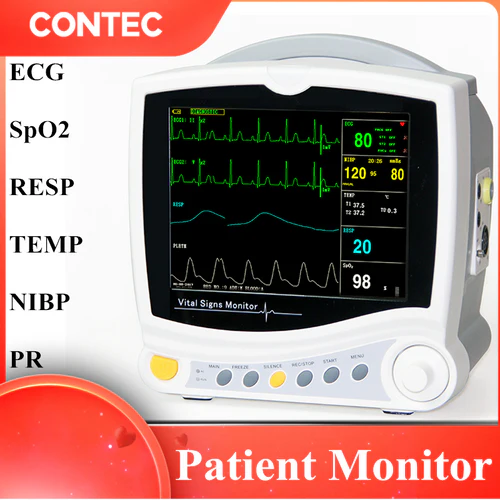

The Contec CMS6800 Patient Monitor is a versatile device designed for comprehensive monitoring of adult, pediatric, and neonatal. Below are its key features and specifications:
Key Features:
- Display: 8-inch color TFT LCD screen showing real-time data and waveforms.
- Monitoring Parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP.
- Waveform Display: Simultaneous display of up to eight-channel waveforms.
- Alarm System: Audible and visual alarms for critical parameters.
- Data Storage: Trend data storage and output capabilities.
- Power Supply: Operates on AC power (100-240V~, 50/60Hz) with a replaceable internal battery for portability.
Specifications:
| Parameter | Details |
|---|---|
| ECG | Lead Modes: 3-lead or 5-lead |
| Lead Selection: I, II, III, aVR, aVL, aVF, V | |
| Gain: 2.5, 5.0, 10, 20, 40 mm/mV | |
| Scanning Speeds: 12.5, 25, 50 mm/s | |
| Heart Rate Range: 15–350 bpm | |
| Accuracy: ±1% or ±1 bpm, whichever is greater | |
| RESP | Method: RA-LL impedance |
| Respiration Rate Range: 0–150 rpm | |
| Accuracy: ±2 rpm | |
| SpO2 | Measurement Range: 0–100% |
| Accuracy: 70–100%: ±2%; 0–69%: unspecified | |
| PR | Range: 30–250 bpm |
| Accuracy: ±2 bpm or ±2%, whichever is greater | |
| NIBP | Method: Oscillometry |
| Modes: Manual, Auto, Continuous | |
| Measurement Range: 10–270 mmHg | |
| Accuracy: ±5 mmHg (mean deviation); 8 mmHg (standard deviation) | |
| TEMP | Channels: Dual |
| Range: 0–50°C | |
| Accuracy: ±0.1°C | |
| Dimensions | 319 mm (L) × 161 mm (W) × 269 mm (H) |
| Weight | 3.6 kg |
