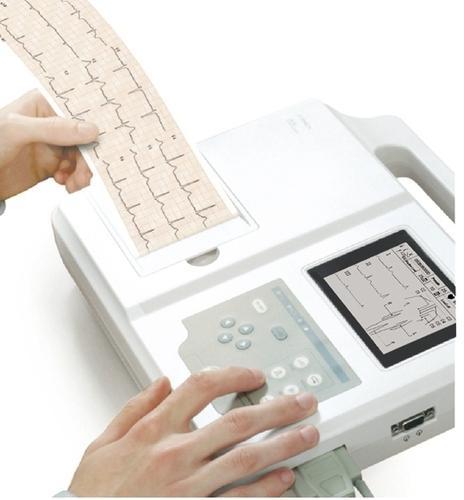

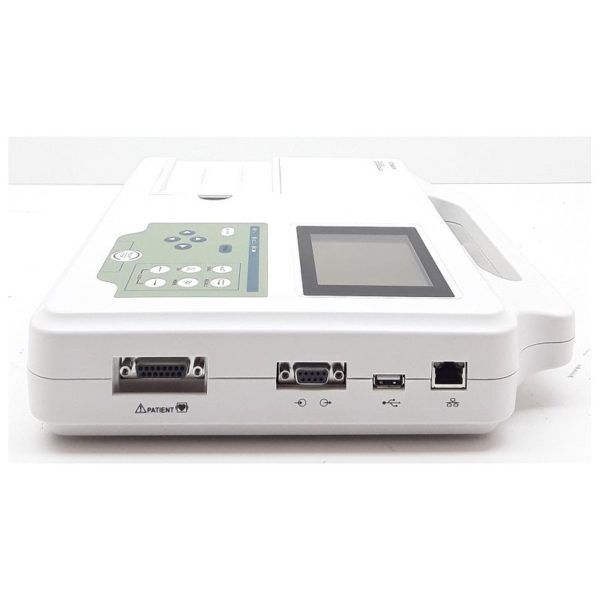

COMEN CM300 3-Channel ECG

COMEN CM300 3-Channel ECG Featured:

• Accurate and clear ECG waveform
• Working state display
• Economical to save recording paper
• Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
• Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
• Multiple printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4-2 etc
• With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis
• Built-in memory stores up to 1000 cases, convenient for case review and statistic.

COMEN CM300 3-Channel ECG Specifications :

• Lead Standard 12 leads
• Input way: Floating and defibrilation protection
• Leak current <10µ A
• Sampling rate 1000Hz
• A/D conversion 12bit
• Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
• CMRR >60dB, >100dB( Add filter)
• Enduring polarization voltage ± 300mV
• Noise level ≤ 15µ Vp-p
• EMG interference filter 25/35Hz (-3dB)
• AC filter 50/60Hz (≥ 20dB)
• Recording way Thermal printing system(32spots/mm)
• Recording paper 80mm(W)× 20m(L)
• Sensitivity 5mm/mV 10mm/mV 20mm/mV 40mm/mV Auto
• Auto-record: 25mm/s, 50mm/s
• Rhythm record: 25mm/s, 50mm/s
• Manual-record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s

COMEN CM300 3-Channel ECG Contents:

• Lead Cable
• Limb Electrodes
• Set Of Chest Electrodes
• Thermal Recording Paper
• Power Cord
• Earth Wire
• User Manual

COMEN CM300 3-Channel ECG Documents:

• Comen CM300 ECG-Brochure
