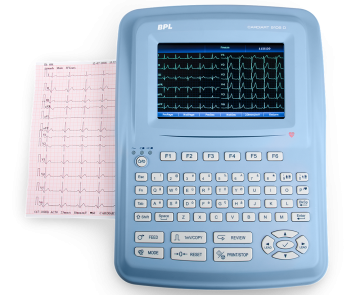

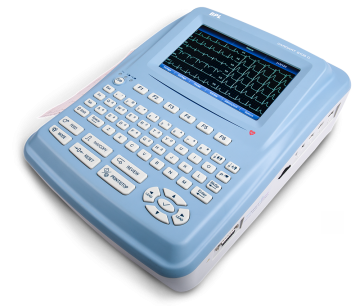

BPL Cardiart 9108D 12-channel ECG is a compact 12-Channel ECG with advanced Glasgow algorithm for interpretation – one of the world leading resting ECG interpretations that use age, gender and race to accurately analyze ECG; Larger high resolution color touch screen, Supports external USB printer, Multi-format reports export, Connectivity features: Wi-Fi, DICOM, FTP, Bar code reader and PC Connectivity through Software.
BPL Cardiart 9108D 12-channel ECG Features:
- 3 Years Warranty
- Twelve Channel ECG Recording.
- 7-inch High resolution color LCD with touch screen option.
- Glasgow ECG Interpretation Algorithm.
- 24-bit A/D converter, 0.01-300Hz bandwidth, 16000Hz sampling frequency.
- Internal storage 800 ECGs and can be enlarged by USB & SD card.
- Li-ion rechargeable battery – 300 ECG’s.
- Report formats: PDF and optional SCP/FDA-XML/DICOM data export.
- Connectivity: FTP, Supports barcode scanner & USB Printer, optional Wi-Fi.
- Optional PC interface software allows to access EMR/PACs/GDT-based Systems (HL7 protocol).
BPL Cardiart 9108D 12-channel ECG Specs:
| Specification | Details |
|---|---|
| Number of Channels | 12-channel |
| Display | High-resolution color TFT LCD |
| Recording Paper | Thermal paper, 80 mm width |
| ECG Modes | Manual, Auto, Rhythm |
| ECG Leads | Standard 12-lead |
| Filters | Baseline drift, AC interference, muscle tremor |
| Recording Speed | 25 mm/s, 50 mm/s, 100 mm/s |
| Frequency Response | 0.05 Hz to 150 Hz |
| Input Impedance | High |
| Keyboard | Intuitive |
| Memory | Internal |
| Data Transmission | USB interface |
| Power Source | AC power supply, rechargeable battery |
| Dimensions | Compact and portable |
| Safety Features | Built-in |
| Certifications | Compliant with medical device standards |
BPL Cardiart 9108D 12-channel ECG Brochure:
- For more details, please download the brochure here – Cardiart-9108D-1623133860
BPL Cardiart 9108D 12-channel ECG FAQs:
1. What is the BPL Cardiart 9108D 12-channel ECG used for?
– The BPL Cardiart 9108D is used to record and analyze the electrical activity of the heart, aiding in the diagnosis of various cardiac conditions.
2. How many channels does the BPL Cardiart 9108D have?
– It features 12 channels, allowing for comprehensive cardiac monitoring and analysis.
3. What types of ECG modes does the BPL Cardiart 9108D offer?
– The device offers multiple ECG modes including Manual, Auto, and Rhythm modes to suit different clinical needs.
4. Is the BPL Cardiart 9108D portable?
– Yes, the device is compact and portable, making it suitable for use in various clinical settings.
5. What is the display type of the BPL Cardiart 9108D?
– It features a high-resolution color TFT LCD display for clear visualization of ECG waveforms.
6. How is the ECG recording paper loaded?
– The device uses thermal paper with a width of 80 mm, which is loaded into the machine for printing ECG tracings.
7. Can the BPL Cardiart 9108D store patient data?
– Yes, it has internal memory for storing patient data and ECG recordings.
8. How is the BPL Cardiart 9108D powered?
– It can be powered by an AC power supply or a rechargeable battery for flexibility in various clinical settings.
9. Does the BPL Cardiart 9108D have safety features?
– Yes, it is equipped with built-in safety features to ensure patient safety during ECG acquisition.
10. Is the BPL Cardiart 9108D compliant with medical device standards?
– Yes, it is compliant with relevant medical device standards, ensuring quality assurance and safety.
