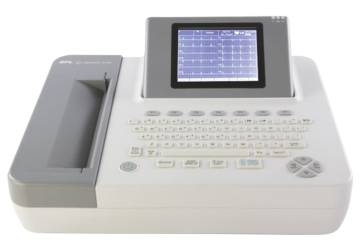

Cardiart 9108 is a 12-Channel ECG with Interpretation, it has a QWERTY keyboard and foldable display. This device is easy to use, supports external USB printers, and has Multi-format reports export.
Features of BPL Cardiart 9108 12-Channel ECG Machine
- 3 Yrs Warranty
- Twelve Channel ECG Recording.
- 5.7-inch foldable LCD screen.
- Automatic Measurements and Interpretation.
- 24-bit A/D converter, 0.01-300Hz bandwidth, 16000Hz sampling frequency.
- Internal storage is 800 ECGs and can be enlarged by USB.
- Li-ion rechargeable battery – 300 ECG.
- Report formats: PDF and optional SCP/FDA-XML/DICOM data export.
- Connectivity: FTP, Supports barcode scanner & USB Printer, optional Wi-Fi.
- Optional PC interface software allows access to EMR/PACs/GDT-based Systems (HL7 protocol).
Specifications of BPL Cardiart 9108 12-Channel ECG Machine
| Display | 320 x 240 dot single colour LCD |
| Communication Interface | Ethernet, Rs232 USB |
| Dimensions | 420mm x 330mm x 105mm |
| Input Circuit | Floating input circuit protection from defibrillation pace makers |
| Lead | Standard 12 leads |
| Acquisition Mode | 12 Leads Simultaneously |
| Safety Standards | IECI/CF |
| AC Mains | 100V-240 VAC, 50Hz-60Hz, 70VAC |
| Battery | Built-in rechargeable 14.8 Li-Ion Battery |
| Battery Life | 100 Patient recordings |
| Recorder | Thermal Printer |
| Record Paper | A4 Size Z fold or 210mm Roll |
| Manual | 3, 6 and 12 |
| Auto | Off 3×4, 3×4,+1R, 3×4+3R, 6×2, 6×2+1R, 6×2 Adjust, 12×1 |
| Rhythm | Single lead and Three leads |
| R-R Mode Analysis | R-R Histogram & R-R Trend |
| Record Speed (mm/sec) | 5, 10, 12.5, 25, 30, 50 (±3%) |
| Patient Cable | 1 No |
| Chest Electrodes | 6 No |
| Limb Electrodes | 4 No |
| Power Cord | 1 No |
| Cardi-Jelly Bottle | 1 No |
| Paper Roll | 1 No (Z Fold) |
| User Manual | 1 No |
