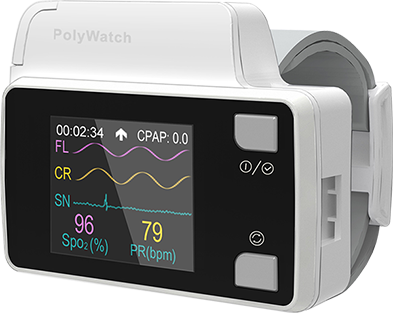

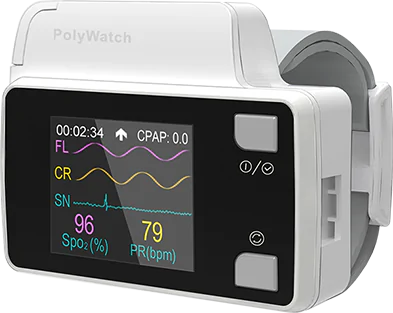

PolyWatch Sleep Screener YH-600B Pro For Professional Seep Apnea Diagnosis.
Polywatch YH-600B can be used in hospitals and families to meet different application scenarios.
The device is light, easy to wear, has friendly human-computer interaction and a real-time screen displays of waveforms and parameters. Professional analysis software, with cross-platform data compatibility, can generate diagnostic reports for clinical reading.
PolyWatch Sleep Screener YH-600B Pro Key Features：
- Portable design meets the mobility requirement.
- Simplicity and lightweight features give you a better sleep care.
- Multiple parameters detection will provide you with reliable and diversified monitory data.
- Automatic sleep identifies and CSA detection gives you an accurate diagnosis.
- Validated report provides you comprehensive information about your sleep index.
- Complete analysis results assist doctors to make further treatment plan for you.
- YH-600B Pro is powered by one 1.5 V AA battery
- The recorded data, such as SpO2, pulse rate, airflow waveform, snore and CPAP pressure, can be replayed on a computer via the PolyLogic Analysis Software which is provided with YH-600B Pro.
- Monitoring Parameters: SpO2, Pulse Rate, Airflow Waveform, Snore, CPAP Pressure, Wrist Movement (Sleep / Awake), Thoracic / Abdominal Respiratory Effort, Body Position
https://www.youtube.com/watch?v=mhaYIr0oAug
PolyWatch Sleep Screener YH-600B Pro Key Specifications:
| Technical Specifications | |
|---|---|
| SpO2 Range | 0%~100% |
| Pulse rate Range | 30~250 bpm |
| Wavelengths | |
| Red | 663 nanometers |
| Infrared | 890 nanometers |
| Maximal Optical Output Power | Less than 1.5 mw maximum average |
| Airflow waveform | |
| Frequency | 10~40 times per minute |
| CPAP pressure | |
| Rang | 4~20 hPa |
| Snore | 150~300 Hz |
| Thorax/Abdomen effort (For YH-600B Pro) | |
| Range | 10~40 times per minute |
| Body position (For YH-600B Pro) | |
| Supine position, sleep on left or right side, and prone positions can be detected | |
| Wrist movement (sleep/wake) | |
| Automatic sleep-awake identification from wrist movement | |
| Temperature | |
| Operation | 5 °C~35 °C |
| Storage/Transportation | -20 °C~55 °C |
| Humidity | |
| Operation | ≤ 80% (non-condensing) |
| Storage/Transportation | ≤ 93% (non-condensing) |
| Atmospheric pressure | |
| Operation | 860~1060 hPa |
| Storage/Transportation | 700~1060 hPa |
| Power supply | DC 1.5V ±0.15V (1×1.5V R6 AA) |
| Minimum record duration | No less than 8 hours |
| Data storage | 64 records can be stored on TF card |
| Dimensions | 78 mm ×60 mm ×21 mm (main device) |
| Weight | 75g (main device without battery) |
| Type of protection against electrical shocks | |
| Internal power supply | |
| Classification of protection against electrical shocks | |
| Type BF applied part | |
| Waterproof rating | IP22 |
| Working mode | Continuous operation |
PolyWatch Sleep Screener YH-600B Pro Key Documents:

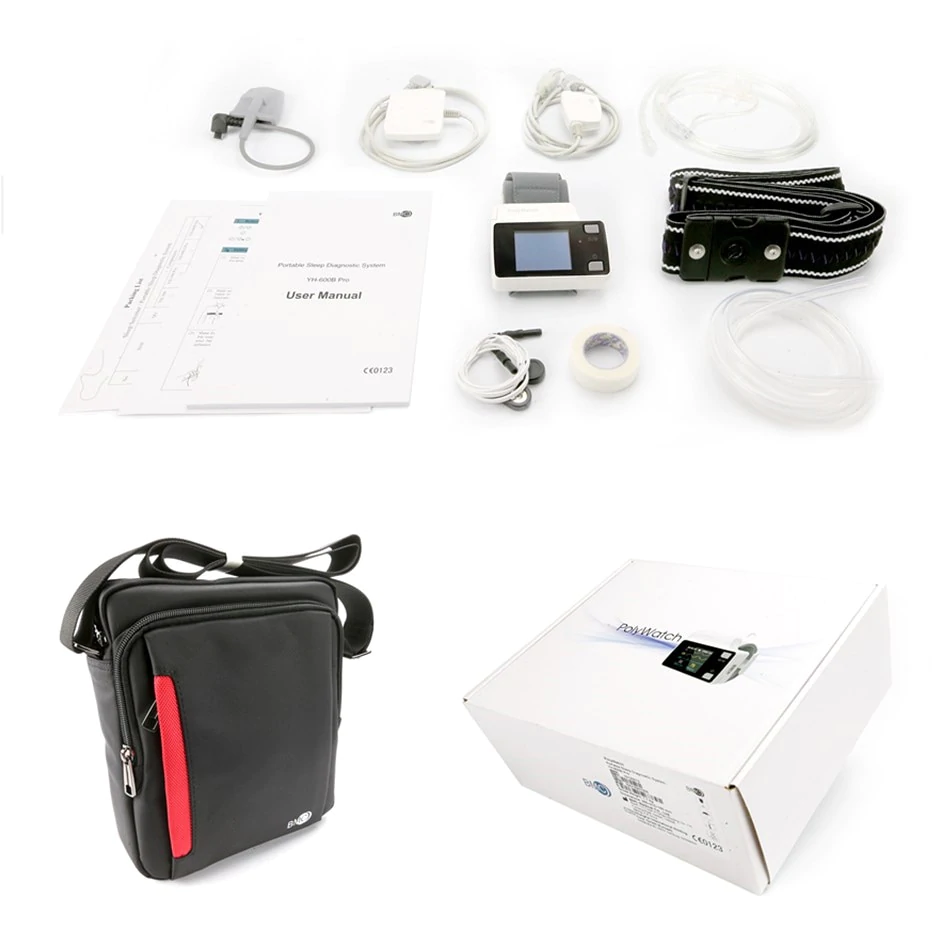

PolyWatch Sleep Screener YH-600B Pro Box Contents:
- 1 x PolyWatch Main Device
- 1 x Wrist Belt
- 1 x Pulse Oximeter Sensor
- 1 x Respiration Kit
- 1 x Airflow Cannula
- 1 x CPAP Pressure Tube
- 1 x Respiration Effort Belt
- 1 x Effort Lead Cable
- 1 x TF Card
- 1 x USB Data Cable
- 1 x PolyLogic Sleep Analysis Software CD
- 1 x User Manual
- 1 x Quick Operation Manual
- 1 x Carrying Case
