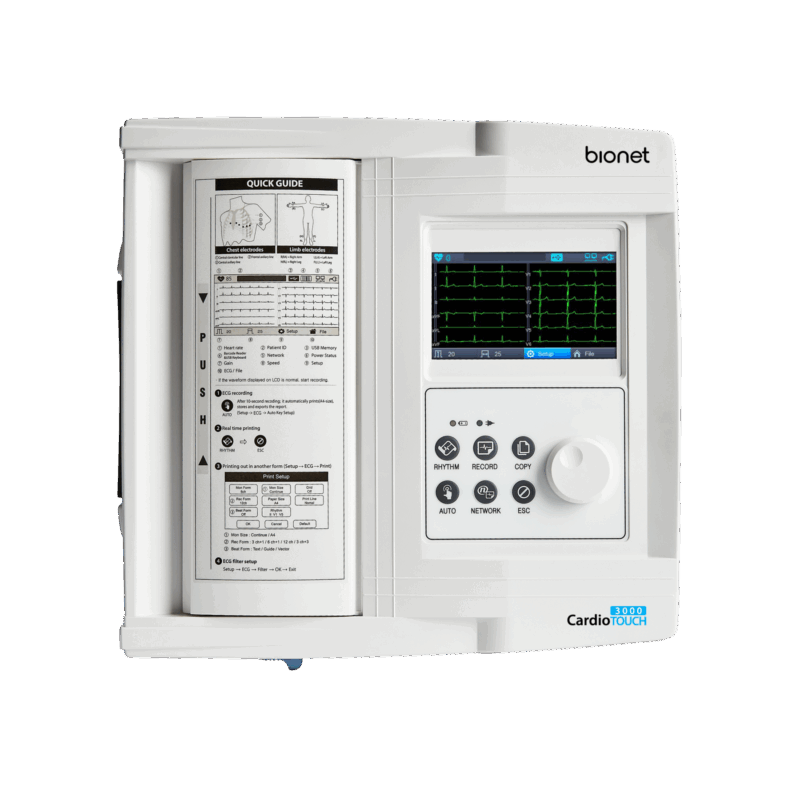

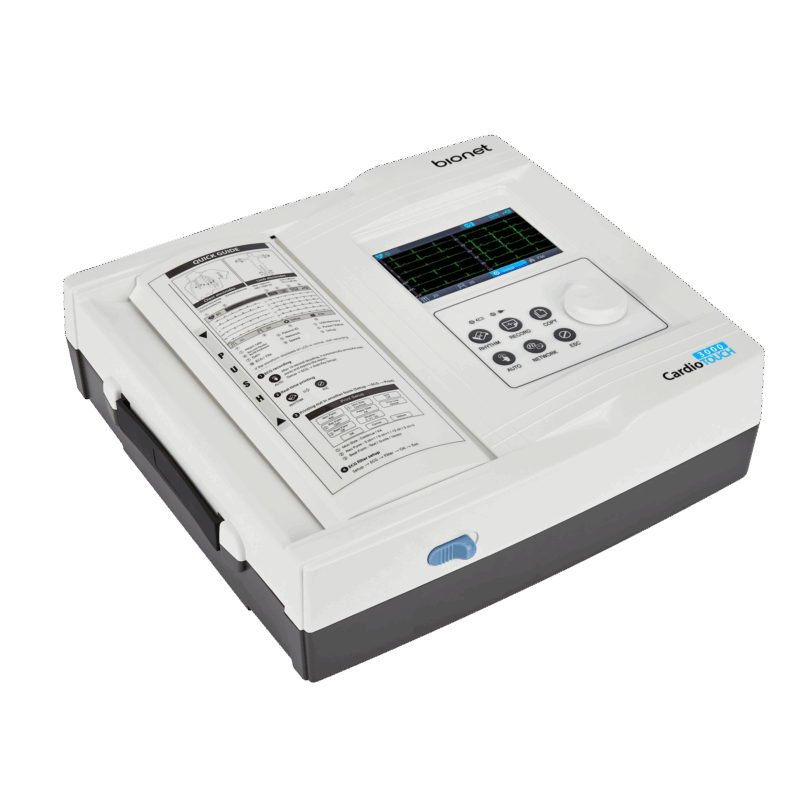

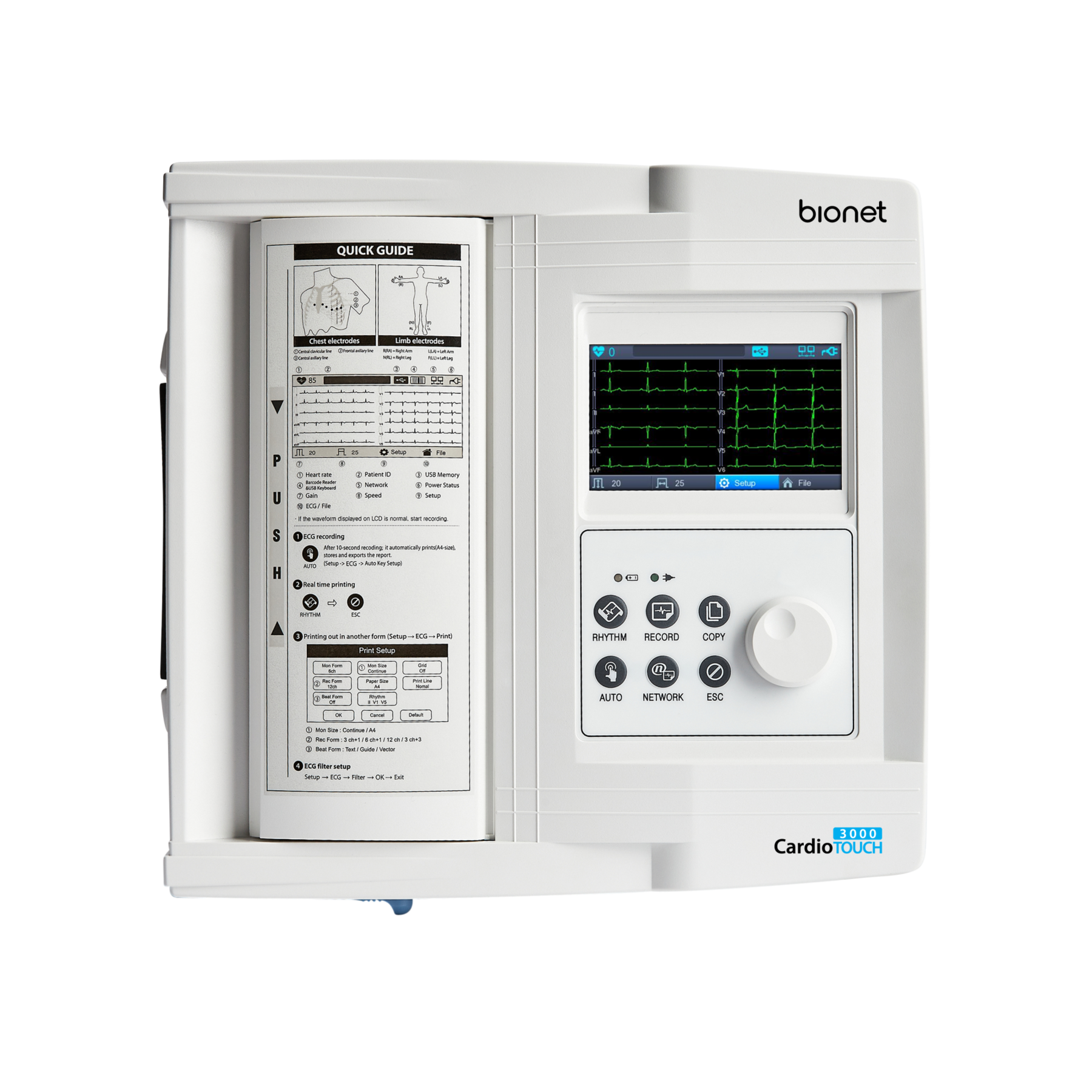

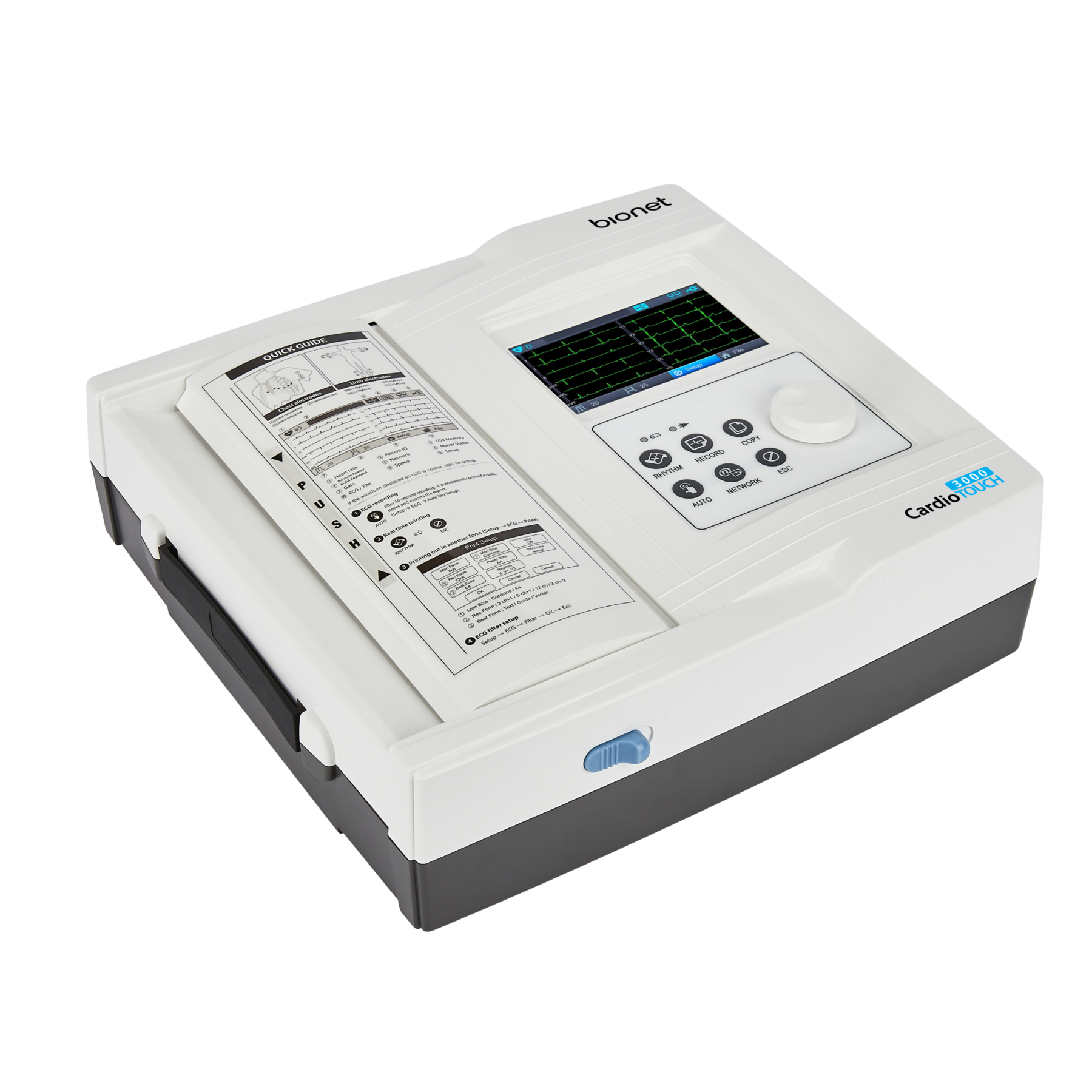

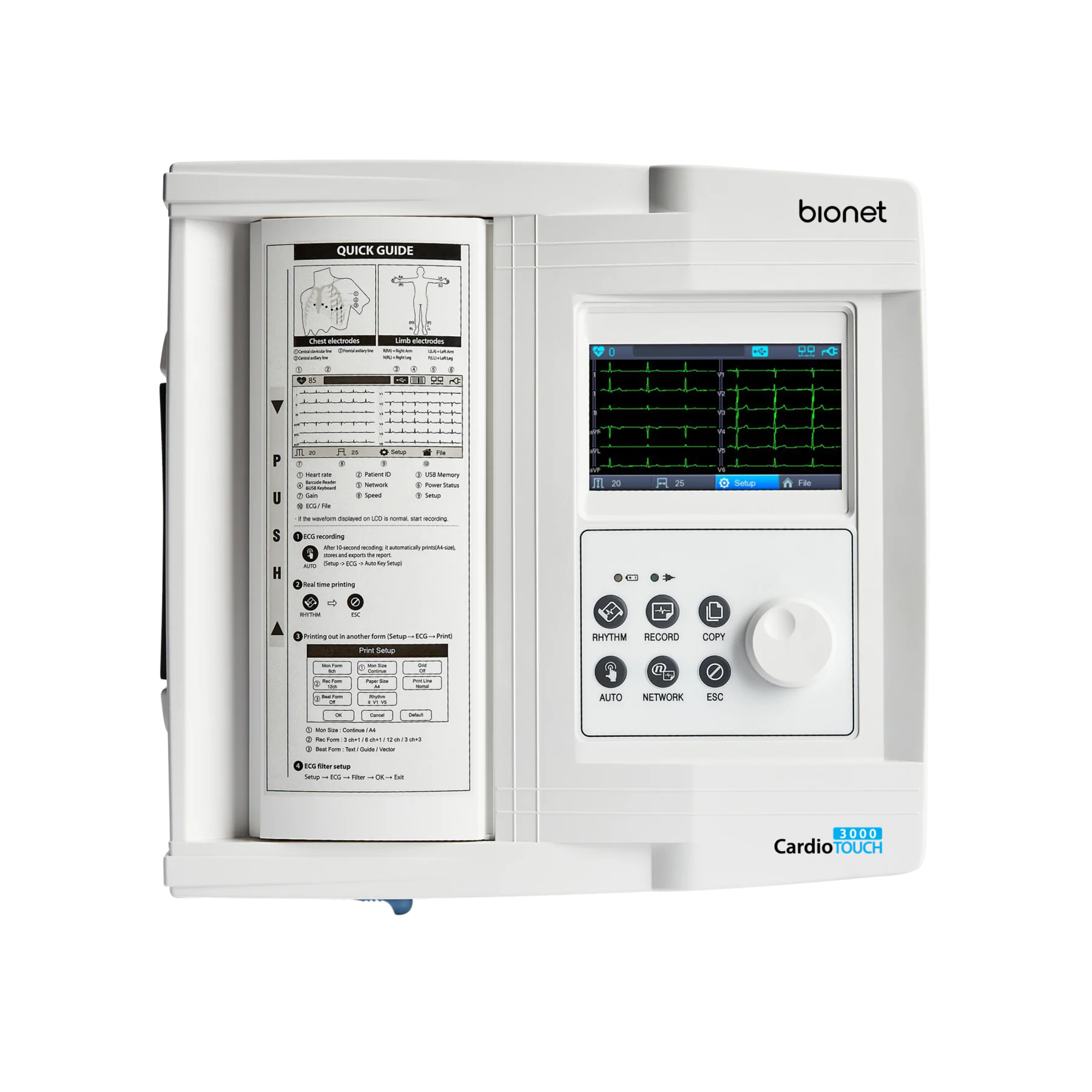

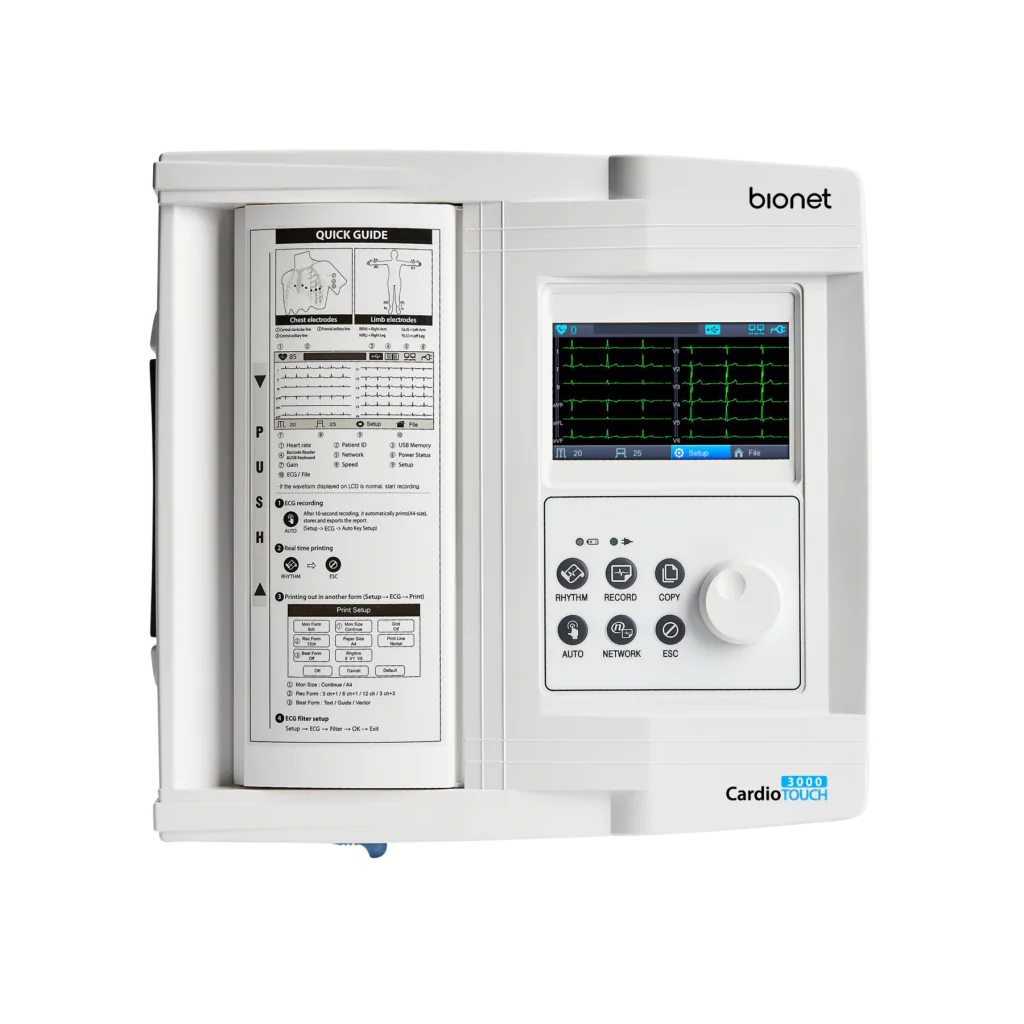

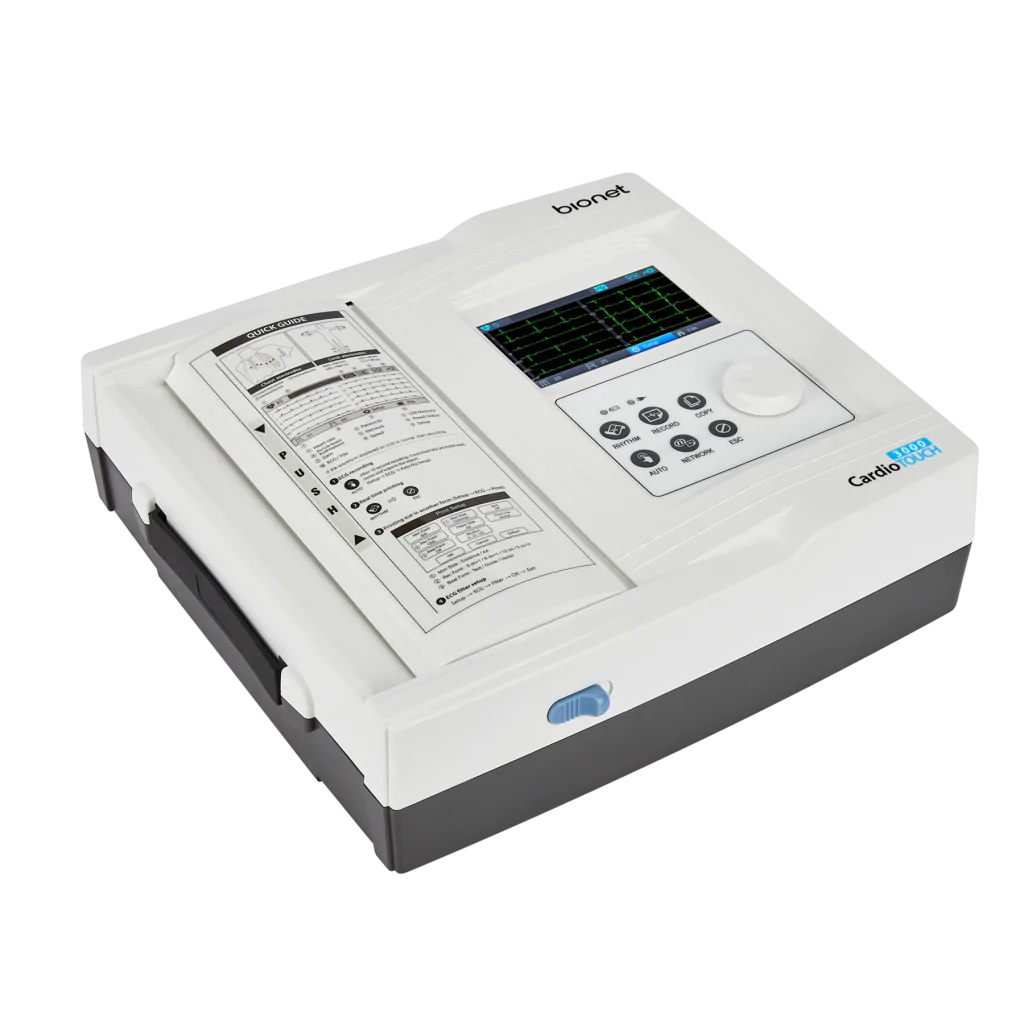

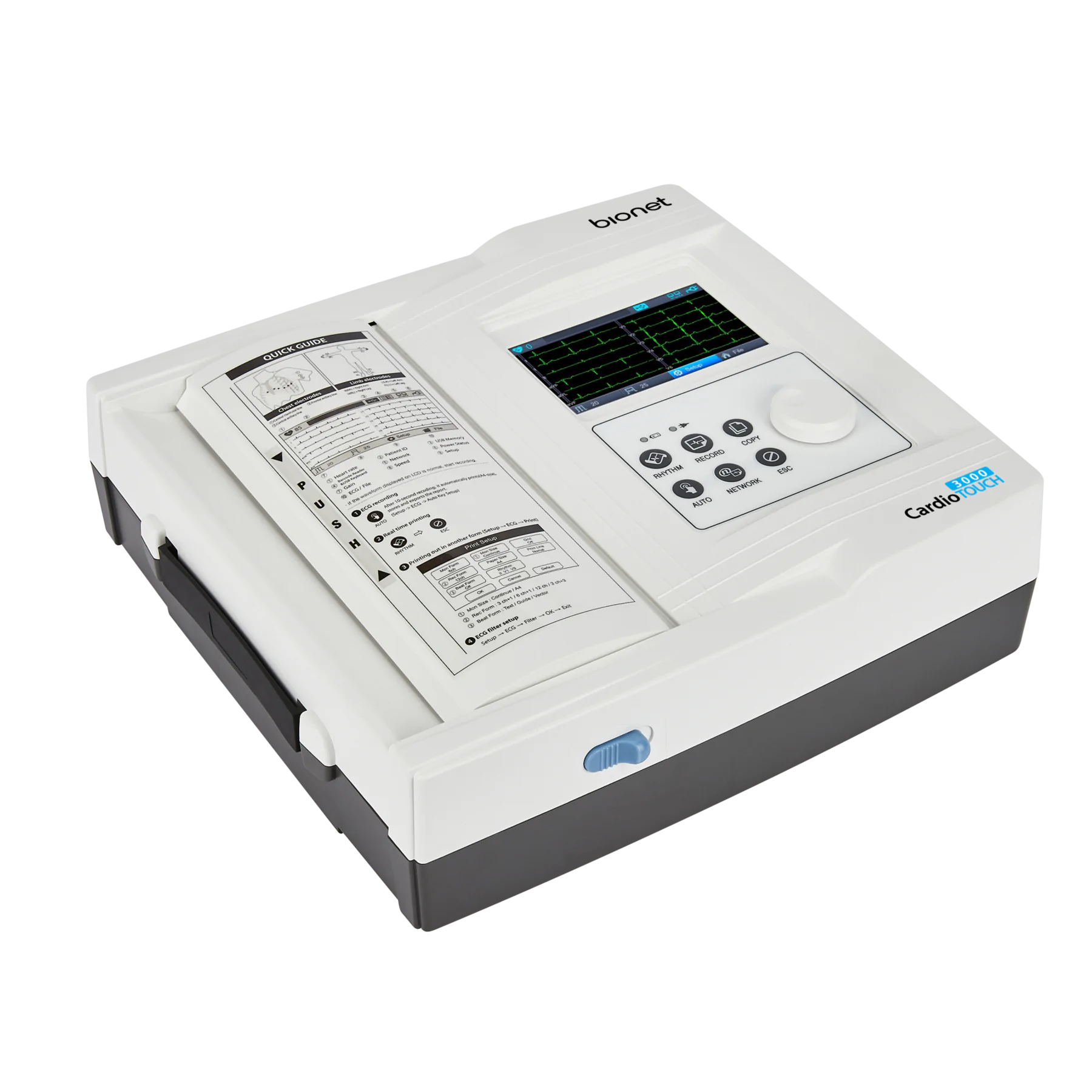

The CardioTouch 3000 is a premium quality interpretive 12 channel electrocardiogram (ECG / EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioTouch 3000 is designed for maximum ease of use and convenience.
Simultaneous 12 Channel Electrocardiograph (ECG/EKG) with a Touch of Succinct Report Simple, Intuitive yet Accurate
- Easy of use interface with 4.3” LCD TFT Touch screen with rotary knob button
- One button “AUTO” operation from acquisition to data storage, print-out & data transfer in 3 sec’
- Convenient A4 print-out for 12CH ECG with a single page report
- 8,000 sampling rate per second
User-Friendly Interface & Diagnosis
- Quick guide indication at printer cover for easy operation recognition
- Rotary knob push button for controlling all menus
- Thermal A4 paper compatible with grid printing mode
- 120 types of interpretation algorithm integrated
- Rechargeable Li-ion battery for 3hr operation / 200 pages printout
Network & Data management
- Wired, wireless connectivity with easy DHCP interface
- BMS-Plus connection to PC for data transfer to HIS (PACS/EMR) with various file format conversion JPEG, BMP, XML, PDF
BMS-Plus is an ECG software program that enables you to interface CardioTouch 3000 to Windows-based computers through LAN. The ECG data from CardioTouch 3000 is saved in either Bionet’s proprietary file format (.ecg), JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements, and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Upgradeable Software
Includes:
- CardioTouch 3000 Main Unit
- 10 Lead ECG Patient Cable
- Alligator Clips, Electrodes
- Medi-Graph Paper
- Hospital Grade Power Cord
- WiFi USB Dongle (Optional)
- Operation Manual
- Diagnostics Guide Book
- Quick Reference Guide
Brochure: Bionet_CardioTouch_3000_ECG_EKG_Leaflet
