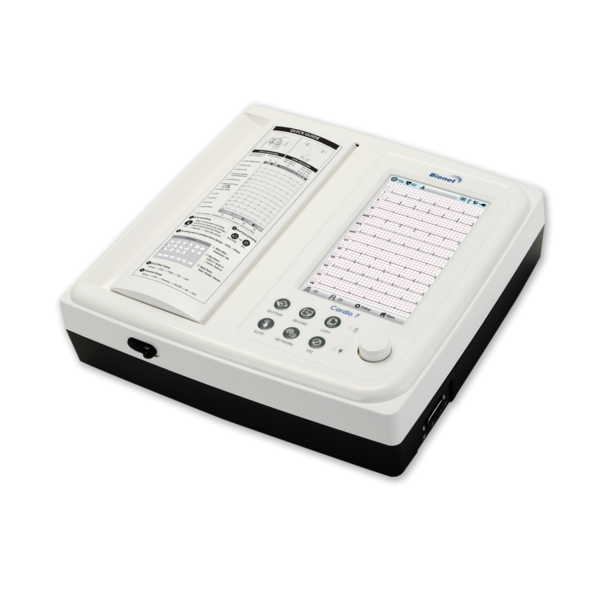

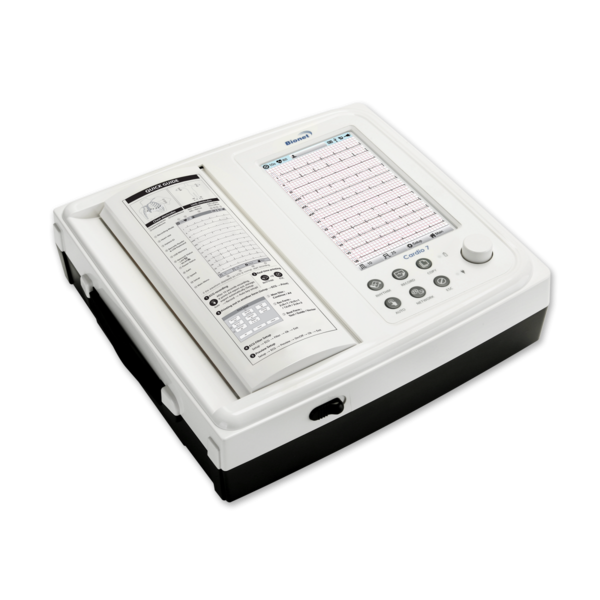

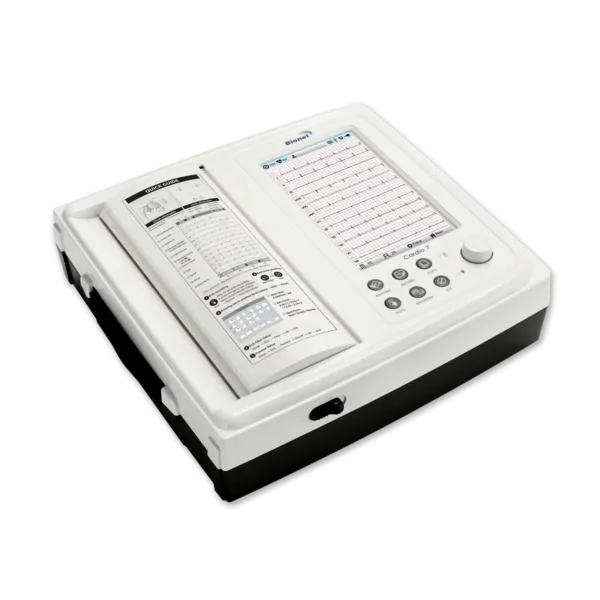

Bionet Cardio7 12-Channel ECG EKG Machine Features:
- Clinically important simultaneous 12 lead acquisition
- 7” TFT LCD touch screen
- WiFi support
- Built-In Memory and Supports USB Flash Drive
- EMR Support (MicroMD Integrated)
- Full Disclosure Function
- Enhanced Interpretation
- Long-Term Recording & Automatic Arrhythmia Detection
- A4 Full Size Paper
- ECG Filing System BMS-Plus
- Spirometer function available
Cardio7 stands out for its advanced technology, high functionality, ease of use, and an unbeatable price/performance ratio.
Maximized Ease of Use
Cardio7 combines menu-guided touch screen technology with a convenient rotary key and buttons to maximize ease of use. USB barcode reader and keyboard can be attached through USB ports.
Built-In Memory and Supports USB Flash Drive
Store up to 200 ECGs in internal flash memory. Saved ECGs can be converted to various standard file formats: JPG, PDF, XML, MFER, and DCM, and exported to external USB flash drive.
EMR Support
NEW- Cardio7 is now fully integrated with MicroMD.
The Cardio7 sends ECGs to PC by using BMS-Plus windows based PC software through LAN or WiFi. It supports DICOM 3.0 protocol to retrieve work lists from PACS and save ECG images to PACS. USB flash drive can be used to move ECGs stored in Cardio7 to PC.
Clinically Important Simultaneous 12 Lead Acquisition
Cardio7 acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis in less than 60 seconds.
Full Disclosure Function
Cardio7 stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms.
Enhanced Interpretation
The ECG printout offers detailed interpretation information in text/guide/vector report formats to aid in diagnosis. Provides 12 channel, 6 channel + 1 rhythm, 3 channel + 1 rhythm, and 3 channel + 3 rhythm reports. Supports pediatric interpretation.
Long-Term Recording & Automatic Arrhythmia Detection
Cardio7 provides one channel long-term recording like 1, 3, 5, 10 minute with arrhythmia detection and HRV (Heart Rate Variability) analysis.

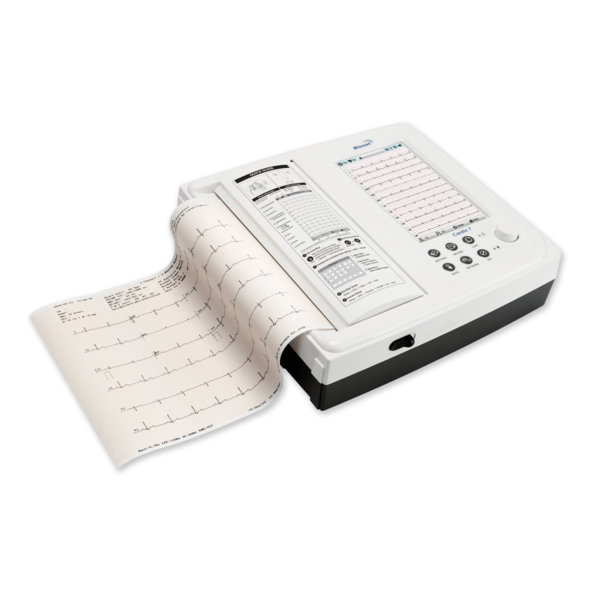

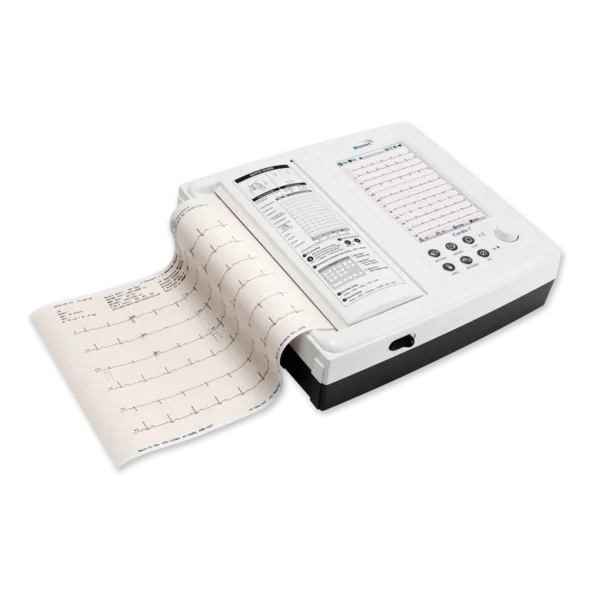

A4 Full Size Paper
Cardio7 produces full size A4 printouts in 1, 3, 6, and 12 channel formats. Full size printouts improve readability and make it easier for filing in the patient chart.
ECG Filing System BMS-Plus (Optional)
BMS-Plus is an ECG software program that enables you to interface CardioCare 2000 to Windows-based computers through LAN. The ECG data from CardioCare 2000 is saved in either Bionet’s proprietary file format (.ecg), JPEG, or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Spirometer function available
SPM-300 spirometer sensor can be attached later to add the pulmonary function tests, including: FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum).
Bionet Cardio7 12-Channel ECG EKG Machine Includes:
Cardio7 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, Quick Reference Guide, and 1-Year Warranty Card. WiFi USB Dongle and USB Flash Drive with BMS-Plus Software (Optional).
Option:
ECG Cart, Hanger, DICOM 3.0, Spirometer Sensor
Videos
Bionet Cardio Series with New Logo
Bionet Cardio7 Video Manual
How to use Bionet BMS Plus
Specification:
| FEATURE | SPECIFICATION |
|---|---|
| ECG leads | 12 channel simultaneous ECG and acquisition |
| Dimension | 300 (w) x 299 (h) x 123 (d) mm Approximately 4 kg |
| Record | Auto, Rhythm, Disclosure, Arrhythmia Detect |
| Recording channel | 3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 1 channel long time (1 min, 3 min, 5 min, 10 min) and special reports (text, guide, vector) |
| Sensitivity | 2.5, 5, 10, 20, auto (I~aVF: 10, V1~V6: 5) mm/mV |
| Printing speed | 5, 12.5, 25, 50, 100 mm/s |
| Sampling rate | 2,000 samples per second |
| Filters | AC (50/60Hz, – 20dB or better) Muscle (25~35Hz, -3dB or better) Base line drift (0.05, 0.1, 0.2 Hz, -3dB or better) Low pass filter: off, 40Hz, 100Hz, 150 Hz |
| Display | 7″ color TFT wide display (800 x 480) |
| Monitor Display | HR, ID, date, AC or battery state, sensitivity, speed, number of saved data, printing form, rhythm lead |
| User Interface | Touch screen, hot key, barcode scanner, USB keyboard |
| Patient data | ID, name, age, sex, height, weight, smoke, race |
| Basic measurement | Heart rate, PR, QRS, QT/QTc, P-R-T axis |
| Recorder | Thermal print head, thermal roll paper Report papers: (width x length) – A4: 215 mm (8.5″) x 297 mm (11.7″) – Letter: 215 mm (8.5″) x 280 mm (11″)Resolution: – Vertical: 8 dot/mm – Horizontal: 16 dot/mm |
| Electrical | Internal noise : 20uV (p-p )max Input impedance : More than 50M? Input voltage range : ±5mV CMRR : +105dB DC offset voltage : >= ±400mV Patient leakage current: Frequency response 0.05~150Hz within -3 db Isolated, defibrillation and ESU protected |
| Signal quality control | Pacemaker pulse detection lead fault detection, signal saturation detection. |
| ECG data storage | Internal storage for 200 ECGs and external USB flash drive |
| Power | Input: 100-240 VAC, 2-1 A, 50/60 Hz Output: 60 VA max |
| External link | LAN, 2 USB Port |
| File format | PDF, JPG, XML, MFER, DCM |
| Battery | Type: Replaceable and rechargeable Lithium Ion Capacity: 6 hours of continuous operation without printing or Approx. 3 hours of 200 ECG printouts |
| Communication | RS232, LAN, WiFi, USB flash drive, USB barcode scanner |
| Safety conformity | Class 1, Type CF, CE, FDA, KFDA, CFDA, NCC |
| Environment | Operating humidity: 30~85% Operating temperature: 10° ~ 40° C |
| Standard accessory | Power Cord (1 ea.), Patient Cable (1 ea.), ECG clips (1 set), Disposable Electrodes (1 pouch), Chart paper (1 ea.), Operation manual (1 ea.), Diagnose guide (1 ea), Rechargeable battery (1 ea) |
| Options | Cart, Hanger, DICOM 3.0 |
* Specifications can be changed without prior notification.
 |
