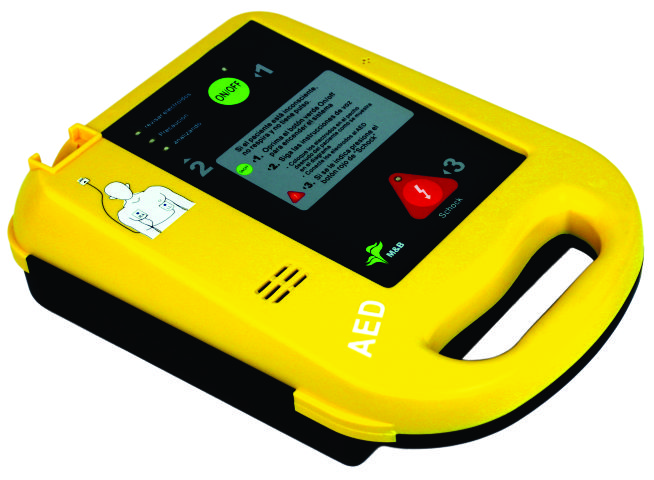

The Automatic External Defibrillator AED7000 is a defibrillation device, which is safe, portable and easy to use. It can be applied in a family and public place to give first aid for the symptom of sudden death. Combined with the advanced ECG analytical technique from M&B, the defibrillator can analyze the patient’s ECG, make a judgment on the patient’s cardiac monitor and indicate whether it is defibrillation, but also minimize injuries of heart defibrillation. The defibrillator will guide the operator to perform the defibrillation treatment via a voice prompt step by step, will give a security alert if the opportunity arises.
Automatic External Defibrillator AED7000 Features:
- Three-step defibrillation process with two-button operation
- Extensive voice and visual prompts for the operator
- Continuous event recording for reporting each use to a printer or computer
- Weekly self-test to ensure readiness
- Biphasic energy output
- Lock-out protection to prevent inadvertent defibrillation
Automatic External Defibrillator AED7000 Specifications:
| Attribute | Value |
|---|---|
| Output | Biphasic Truncated exponential |
| Energy Sequence | 150J, 150J, 200J |
| Charge Time | 8 sec. to 150J
10 sec. to 200J (NEW battery) |
| Analysis Time | 9 sec. |
| Maximum Time from Initiation to Readiness (New Battery) | Less than 30 seconds |
| Maximum Time from Initiation to Readiness (After 6 Shocks) | Less than 35 seconds |
| Maximum Time from Initiation to Readiness | Less than 25 seconds |
| Audible Prompts | 20 audible prompts |
| Visual Prompts | LED prompts |
| Controls | Two buttons – On/Off, Shock |
| Output Energy Accuracy | ±15% into impedance from 25 to 75Ω |
| Maximum Voltage | 1200±50V |
| Output Disabled When Patient Impedance is Outside Limits | 20Ω to 200Ω |
Automatic External Defibrillator AED7000 Battery Specifications:
- Non-Rechargeable: 12V DC. 3.0 Ah
- Capacity: 100 discharges at 200 Joules or 120 discharges at 150 Joules
- Shelf Life (25℃±15℃): 10 years (5 years storage + 5 years standby)
- 5 years standby (after installation)
Automatic External Defibrillator AED7000 Box Contents:
- 1 AED 7000 Machine
- 1 Pair of Pads
- 1 pcs Batteries
- 1 pcs Handbag
Automatic External Defibrillator AED7000 Brochure:
Automatic External Defibrillator AED7000 FAQs:
1. What is an Automatic External Defibrillator AED7000?
An AED7000 is a portable device used to deliver an electric shock to the heart in cases of sudden cardiac arrest.
2. How does the AED7000 work?
The AED7000 analyzes the heart’s rhythm and delivers a shock if it detects a life-threatening arrhythmia, such as ventricular fibrillation or ventricular tachycardia.
3. Who can use the AED7000?
The AED7000 is designed to be used by anyone, including laypeople and healthcare professionals. It provides clear audio and visual instructions to guide users through the rescue process.
4. When should I use the AED7000?
The AED7000 should be used as soon as possible in cases of sudden cardiac arrest, alongside cardiopulmonary resuscitation (CPR).
5. Is training required to use the AED7000?
While training is beneficial, the AED7000 is designed for ease of use and provides step-by-step instructions to assist users, even those without prior training.
6. How do I maintain the AED7000?
Regular maintenance of the AED7000 includes checking the device’s battery and electrode pads to ensure they are within their expiration dates and replacing them when necessary.
7. Can the AED7000 be used on children?
Yes, the AED7000 typically comes with pediatric electrode pads or a key to adjust the energy level for use on children.
8. How long does the AED7000 battery last?
The battery life of the AED7000 varies depending on usage and environmental conditions. It is recommended to regularly check the battery status indicator and replace the battery as needed.
9. What is the warranty period for the AED7000?
The warranty period for the AED7000 may vary depending on the manufacturer. Please refer to the product documentation or contact the manufacturer for warranty information.
