This is a compatible 10 lead ECG cable for ECG machines. At respbuy, we keep replacement parts with best quality even if they are from generic brands.
15 Pin Replacement Cable For 10 Lead ECG Machines Features:
- 10 lead ECG Cable (6 leads for chest electrodes, 4 for limb electrodes)
- Limb or chest electrodes are not included
- Compatible with all ECG machines except GE ECG machines
- 15 Pins
15 Pin Replacement Cable For 10 Lead ECG Machines Compatibility Matrix:
| Manufacturer | Model |
|---|---|
| BTL | BTL-08 LT |
| Bionet | Cardio 7, CardioTouch 3000, Cardiocare 2000, Cardiocare 3000 |
| CardioTech | CRT-6D, CRT-6T, CRT-6U |
| Cardiovex | T600 Treadmill |
| Contec | ECG1200G, ECG600G |
| Del Mar | CardioCollect 12 |
| Dr. Lee | 120B, 310A, 310B |
| Mortara > Burdick | ELI 10, ELI 150, ELI 210, ELI 230, ELI 250, ELI 250C, ELI 280, ELI 350, Eli 150RX |
| Mortara | AM12M (41000-037-50), Surveyor S12/S19 |
| Philips | 200, 200i, Agilent 300PI, Agilent 300i, M1770A, M1771A, M1772A, Pagewriter 100, Pagewriter 200, Pagewriter 300pi, Pagewriter TC20 |
| Spacelabs | CardioDirect 12 |
| Welch Allyn | CP 10, CP 150, CP 20, CP 250, CP 50 |
| Woodway | Cortex CPX System |
15 Pin Replacement Cable For 10 Lead ECG Machines Technical Specifications:
| Category | EKG |
|---|---|
| Certifications | FDA, CE, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant |
| Connector Distal | DB-15 Connector with Screws |

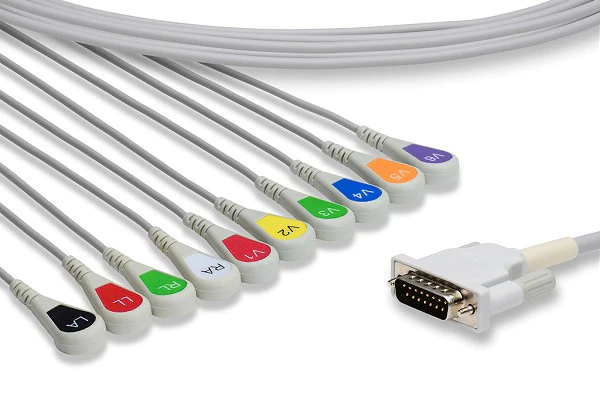

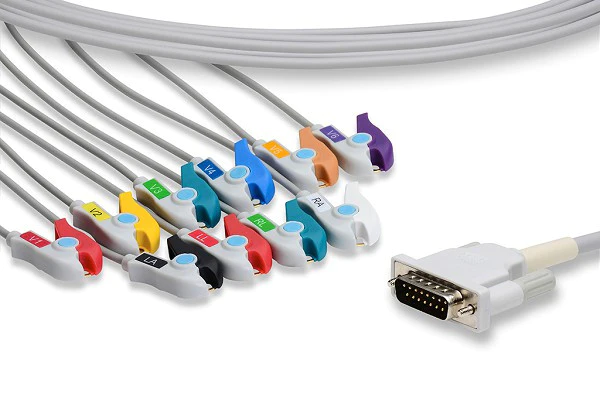

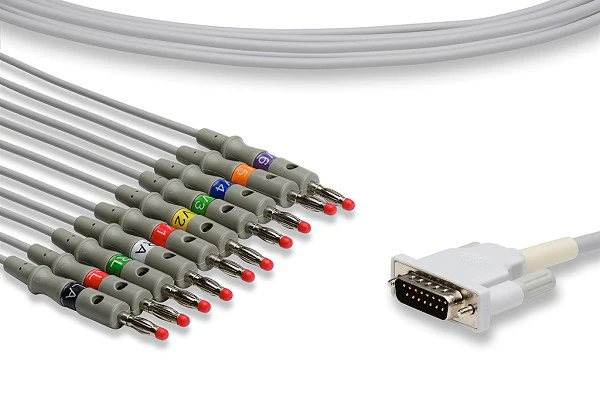

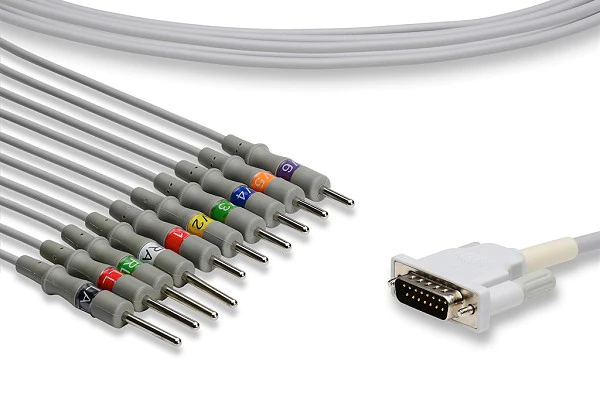

| Connector Proximal | Banana, Snap, Pinch/Grabber, Needle |
| Latex-free | Yes |
| Lead Cable Color | Gray |
| Lead Cable Diameter | 3.00 mm |
| Lead Cable Length Limb | 4 ft |
| Lead Cable Length V | 2.5 ft |
| Lead Cable Material | TPU Jacket |
| Lead Color Coding | AHA |
| Lead Number | 10 |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Adult/Pediatric |
| Resistance | 20K Ohms |
| Sterile | No |
| Total Cable Length | 10 ft |
| Trunk Cable Color | Gray |
| Trunk Cable Diameter | 6 mm |
| Trunk Cable Length | 7 ft |
| Trunk Cable Material | TPU Jacket |
| Warranty | 1 months |
| Weight | 0.9lb |
15 Pin Replacement Cable For 10 Lead ECG Machines Contents:
- 1 piece for 10 lead ECG cable
FAQs – 15 Pin Replacement Cable For 10 Lead ECG Machines
1. What is a 15-pin replacement cable for a 10-lead ECG machine?
This cable is designed to connect a 10-lead ECG machine with a 15-pin interface to the necessary electrodes for ECG readings. It adapts the connector types for compatibility.
2. Why would I need a 15-pin replacement cable?
If your ECG machine uses a 15-pin connector and your current cable is damaged or needs replacement, this cable allows you to connect the machine to the required electrodes for patient monitoring.
3. Can I use a 15-pin cable with any 10-lead ECG machine?
It depends on the specific model of your ECG machine. Some machines may have proprietary connectors or pin configurations, so ensure compatibility before purchasing a replacement cable.
4. How do I know if a 15-pin replacement cable will work with my ECG machine?
Look for compatibility information regarding replacement cables.
5. What are the advantages of using a replacement cable?
Using a replacement cable ensures proper connectivity between your ECG machine and the electrodes, maintaining accurate readings and patient safety during monitoring.
6. Where can I purchase a 15-pin replacement cable for my 10-lead ECG machine?
You can buy these cables from medical equipment suppliers, online marketplaces, or directly from the manufacturer of your ECG machine. Ensure you’re purchasing from a reputable source.
7. Is it easy to replace the cable myself?
Depending on the design of your ECG machine, replacing the cable can be straightforward. Follow any instructions provided by the manufacturer to safely replace the cable without damaging the machine.
